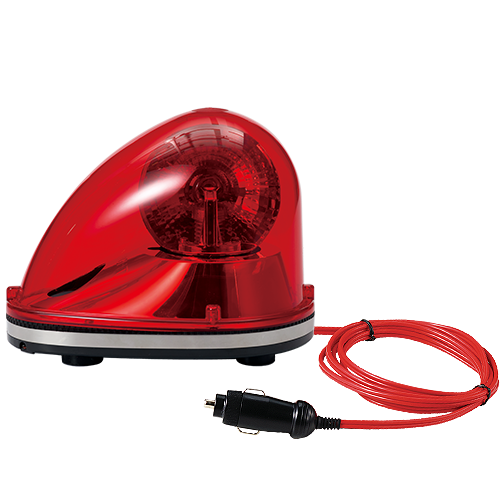

S Series for vehicle
Copied to clipboard
SKMLR
- Voltage
DC:12V,24V
- Dimension
Height : 138 │Length : 183
- Materials
Linse-PC │Gehäuse-PC
- Protection rating
IP54
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Excellent visibility with special multi-faced reflector structure
- Adopts a special power transmission system that reduces noise and wear
- Attractive appearance by installed structure cover inside products
- 4 strong magnets enable secure attachment to the vehicle
- Materials : Lens-PC, Housing-PC, Reflector-Heat resistant ABS
- Revolving speed : 120-140RPM
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP54
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SKMLR | DC12V | 420mA | - | 0.46kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 265mA | 0.46kg |
• 4 strong magnets enable secure attachment to the vehicle
• External Power line(SKLR ) UL1015 AWG18(0.75sq) x 2C 400mm
• External Power line(SKMLR) Cigarette lighter plug, IEC42(0.75sq) x 2P 2m
• DC Type: Black output line is negative(-)
