SH Series
Copied to clipboard

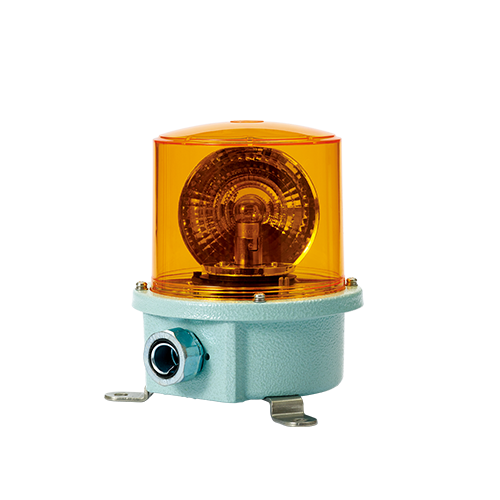

SH1
Weatherproof Revolv
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø119 │Height : 168
- Materials
Lens-PC │Housing-Al, SUS │Protection cage-STS316L │Reflector-Heat resistant ABS │Bracket-STS316L
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the product
- Excellent light diffusion effect with multi faced reflector
- Adopts a special power transmission system that reduces noise and wear
- Revolving speed : 120-140RPM
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Ambient operation temperature : -20°C to +50°C
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry :1/2″PF
- Certificates : CCS, CE
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Color | ||
|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||
SH1 SH1-SUS SH1P SH1P-SUS SH1T SH1TP | DC12V | 1.55A | 12V15W | G23 15S | 17 | |  R-Red A-Amber G-Green B-Blue |
| DC24V | 850mA | 24V15W | G23 15S | 18 | |||
| AC110V | 200mA | 12V15W | G23 15S | 17 | |||
| AC220V | 100mA | 12V15W | G23 15S | 17 | |||
※ CE compliant: DC24V, CCS(SH1 / SH1P only)
