Telefon initiert Signalgerät
Copied to clipboard
SESAS-TI
- Product Feature
15 Built-in Sounds (Max. 118dB at 1m), 5 Alarms (Max. 116dB at 1m), 5 User-Defined Voice (Max. 113dB at 1m)
- Voltage
DC:24V│AC:120V,230V
- Dimension
Cage Diameter : Ø167 │Height : 333 │Length : 327
- Materials
Lens-Tempered glass │Housing-Al
- Protection rating
Ex db IIC T6 Gb│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

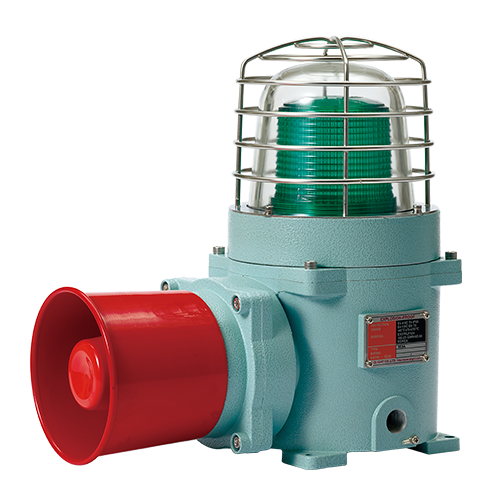

Product Feature- Large explosion proof warning light and electric horn combinations
- Telephone Initiated Signal beacon triggers built-in alarm sound that is activated by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- A variety of light sources and sound selections to fit your sophisticated application needs
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : 95VDC to 130VDC
- Lamp connector fastening structure allows for convenient lamp replacement
- High efficiency strobe light offers excellent visibility for long distances
- Flashing rate : 60-80 flashes/min
- Sound volume : Max 118dB at 1m(Volume adjustable)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector for LED type-PC/Reflector for bulbt ype-Heat resistant ABS
- Certificates : IECEx, ATEX
- Protection rating :IECEx - Ex db IIC T6 Gb, IP66
ATEX -
II2G Ex db IIC T6 Gb, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Product Specifications
New Document
| Model number | Voltage | Current | Xenon lamp | Sound pattern and volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SESAS-TI | DC24V | 1.4A | 200V-550V | EUB0641-1A(G) U Type | 48 | · WS-5 Warning sounds : Max.118dB · WP-5 Special warning sounds: Max.118dB · WM-5 Melodies : Max.118dB · WA-5 Alarms : Max.116dB · WV-5 Customizablevoices : 110-115dB | | 8.45kg |  R-Red A-Amber G-Green B-Blue |
| AC120V | 300mA | 8.86kg | |||||||
| AC230V | 190mA | ||||||||
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
|
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
|
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
|
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
|
| 5 Customizable voices |
