SEBA Series
Copied to clipboard
SEBAL
Combinations / Hazardous Area Comb Max.95dB
- Product Feature
Alarmglocke (Max.95dB at 1m)
- Voltage
DC:24V│AC:110V,220V
- Dimension
Cage Diameter : Ø167 │Height : 333 │Depth : 240
- Materials
Linse-Hartglas │Gehäuse-Al
- Protection rating
Ex d ⅡC T6│IP55
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

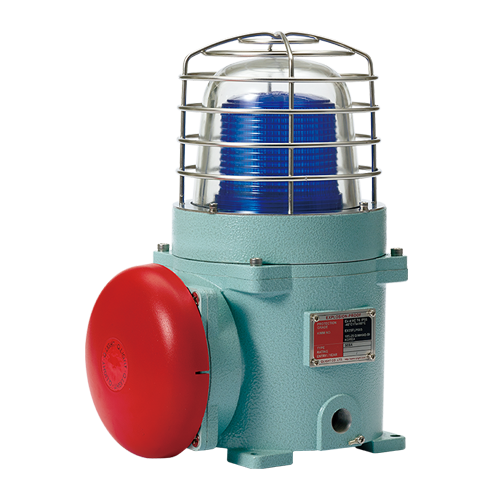

Product Feature- Large explosion proof signal beacon / light & alarm bell combinations
- Long product lifetime with the application of a high intensity LED light source
- Suitable for locations where bulb replacement is inconvenient
- Flashing rate : 60-80 flashes/min(Built in switch for steady/flashing selection)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials: Lens-Tempered glass, Filter-PC, housing-Al, Protection cage-STS316L, Reflector-ABS
- Protection rating : Ex d ⅡC T6, IP55
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Product Specifications
| Model number | Voltage | Current | Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| SEBAL | DC24V | 210mA | Max.95dB | - | 7.25kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 160mA | 7.99kg | ||||
| AC220V | 70mA | 7.99kg |
