SBE Series
Copied to clipboard

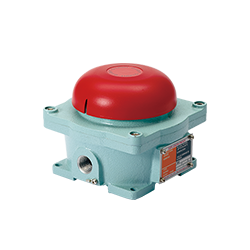

SBE150
Hazardous Area Audible Alarms
Max.95dB
- Product Feature
Alarmglocke (Max.95dB at 1m)
- Voltage
DC:24V│AC:110V,220V
- Dimension
Bell Diameter : Ø150 │Height : 120 │Length : 138
- Materials
Glocke-Al │Gehäuse-Al
- Protection rating
Ex d ⅡC T6│IP56
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Explosion proof alarm bell for audible signal in hazardous area
- Adopts special solenoid bell structure, sutable in vessels which encounter serious vibration and impact or outdoor plants application
- Fully enclosed structure with protection rating of IP56
- Sound volume : Max. 95dB at 1m
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Certificates : KIMM
- Protection rating: Ex d ⅡC T6, IP56
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Product Specifications
| Model number | Frequency | Volume | Bell diameter | Voltage | Current | Certificates | Weight |
|---|---|---|---|---|---|---|---|
| SBE150 | 600Hz | Max.95dB | 150mm | DC24V | 55mA | | 2.52kg |
| AC110V | 45mA | ||||||
| AC220V | 25mA |
