S80AR

S Series (Ø50-80) Copied to clipboard

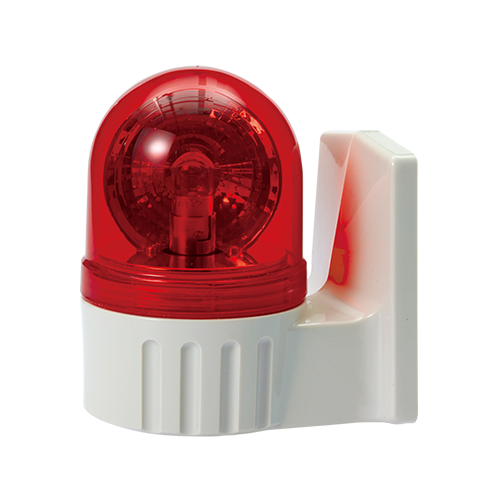

S80AR

Ø80mm Bulb Revolving Warning Light
Max.90dB
Bulb Revolving TypeIP44-20℃ ~ +50℃Buzzer90dB
  • Product Feature

    Summer, feste Lautstärke (Max. 90dB at 1m) : optional erhältlich

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø80(Approx.) Height : 125 Depth : 113

  • Materials

    Linse-AS Gehäuse-ABS

  • Protection rating

    IP44

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Equipped wall mount allows for easy assembly. Additional mounting brackets not required
  • Terminal block designed inside the side mount bracket enables easy wiring
  • Built-in buzzer available (Volume : Max. 90dB at 1m)
  • Revolving speed : 120-140RPM
  • Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
  • Ambient operating temperature : -20°C to +50°C
  • Protection rating : IP44

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentBulbCertificatesWeightColor
SpecStandardParts no
S80AR
DC12V530mA12V5WT16x35 15S5

0.31kg R-Red
A-Amber
G-Green
 B-Blue
DC24V370mA24V5WT16x35 15S60.31kg
AC110V80mA12V5WT16x35 15S50.50kg
AC220V40mA12V5WT16x35 15S50.50kg

※ CE compliant: DC12V, DC24V
