S Series (Ø50-80)
Copied to clipboard

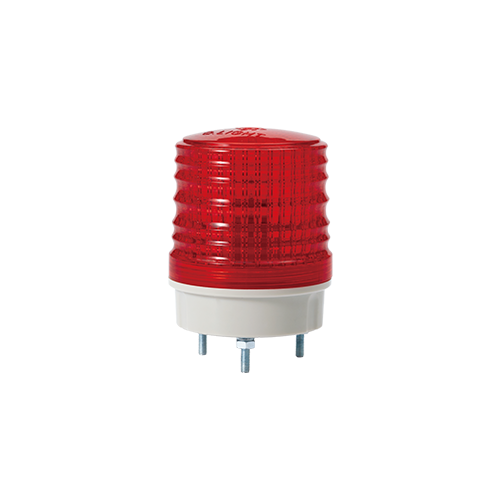

S50B
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø50 │Height : 60
- Materials
Linse-AS │Gehäuse-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø50mm compact signal lights
- Enhanced visibility that employs a special scattering lens
- Suitable for office-automation applications, small machines, and portable automation equipment with confined space environments
- Powerful omni-directional light source that enables high visibility
- Standard condition operates with steady light function but the flashing light condition can be enabled with external contacts
- Employs a special filament to prevent damage caused by possible voltage variations
- Materials : Lens-AS, Housing-ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S50B | DC12V | 475mA | 12V5W | G14 9S | 1 | - | 0.05kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 290mA | 24V5W | G14 9S | 2 | 0.05kg | |||
| AC110V | 50mA | 110V5W | T16x28 9S | 3 | 0.05kg | |||
| AC220V | 25mA | 220V5W | T16x28 9S | 4 | 0.05kg | |||
ㆍStandard condition operates with steady light function but the flashing light condition can be enabled with External Contacts
ㆍEmploys a special filament to prevent damage caused by possible voltage variations
