S Series (Ø100-125)
Copied to clipboard
S100S
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø100(Approx.) │Height : 113
- Materials
Linse-AS │Gehäuse-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

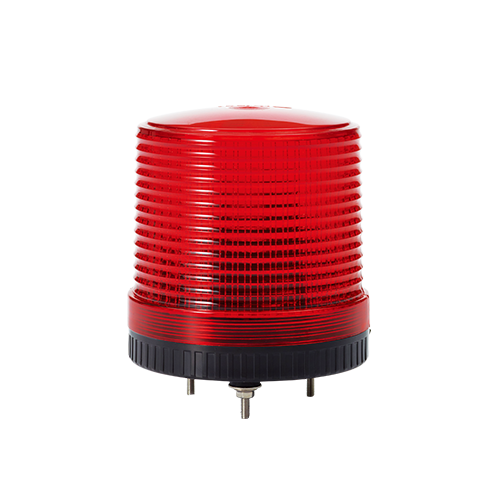

Product Feature- Ø100mm xenon lamp strobe signal light
- High efficiency strobe light that offers excellent outdoor visibility and long-distance signal light luminance close to natural light
- Lamp connector structure for convenient lamp replacement
- Flashing rate : 60-80 flashes/min
- Material : Lens -AS, Housing-ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP54
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Xenon Lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S100S | DC12V-24V | Max.1.3A | 200V-550V | EUB0641-1A(G) U type | 48 | | 0.25kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 160mA | 0.25kg | ||||||
| AC220V | 140mA | 0.25kg | ||||||
※ CE Compliant: DC12V-24V
