Telefon initiert Signalgerät
Copied to clipboard

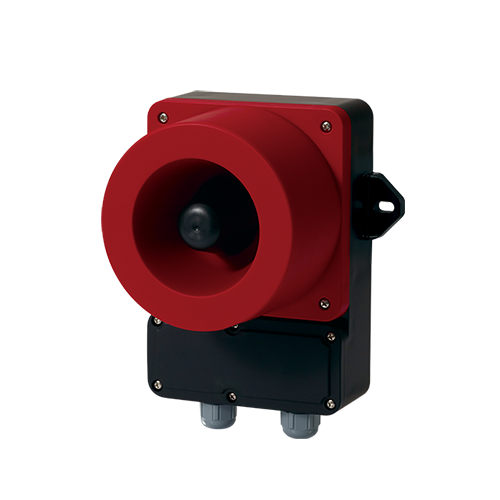

QWH35-TI
- Product Feature
31 Built-in Sounds (Max. 115dB at 1m)
- Voltage
DC:12V-24V│AC:110V-220V
- Dimension
□136×195.5 │Depth : 126
- Materials
Horn-PC+ABS │Housing-PC+ABS
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Signal fit for the specific environment and condition.
- Telephone Initiated alarm horn sounder triggers built-in alarm sound that is activated by 25Hz telephone ring signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 line) is connected to PSTN cable
- 31 available tones that can be selected for a variety of environments
- 31 pre-recorded tones available via binary input
- Suitable for use in environments that require a tight seal and superior dust protection rated IP66
- Easy wiring though external terminal box
- Rated power when telephone lines are not in use: 45VDC - 55VDC
- Rated power when telephone rings : 95VDC - 130VDC
- Cable entry : PG13.5
- Ambient operating temperature :
-30°C to +50°C(Standard)
-50°C to +50°C(Low temperature type only DC) - Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight |
|---|---|---|---|---|---|
| QWH35-TI Terminal box equipped type Builtin sound type | DC12V-24V | Max.1.15A | • Binary Input : 31Ch • Warning Sounds : Max.115dB (Based on Ch31) | - | 1.10kg |
| AC110V-220V | Max.300mA |
