QT50L-W

QT Series Copied to clipboard

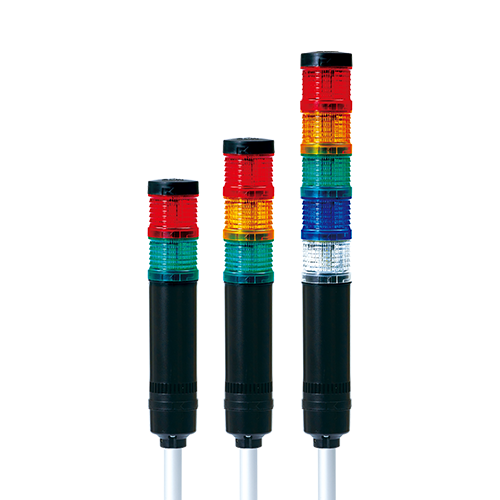

QT50L-W

Ø50mm Built-in Signal Modular
LED Tower Lights
Max.85dB
IP54-30℃ ~ +50℃Speaker85dBNPN-Transistor Type
  • Product Feature

    Schallgeber, regulierbare Lautstärke (Max. 85dB at 1m)

  • Voltage

    DC:12V,24V

  • Dimension

    Diameter : Ø50mm Height : 297-461

  • Materials

    Linse-PC Gehäuse-PC Pole-Al

  • Protection rating

    IP54

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download
  • Accessories

Product Feature

Product Feature
  • QT series tower light is a multifunctional product that allows for significant customization to your specific needs using our special modular components such as the lens, buzzer, ethernet cord, USB cord and mounting brackets. Additional tools are not required for assembly
  • All modular components can be arranged freely to the user desired position (upper/ lower) except for the dial tone lever
  • Product consists of LED modules, base module, sounder module and pole module
  • Can select from a variety of LED light functions
  • Can select from a variety of pole selections to fit your application needs
  • Material : Lens-PC, Housing-PC, Pole-Al
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP54

  • Product Feature
  • Product Specifications
  • Download
  • Accessories

Product Specifications

Model numberLayerBuilt-in SoundVoltageCurrentCertificatesWeightColor
QT50L-WS
QT50L-WM
QT50L-WA
QT50LF-WS
QT50LF-WM
QT50LF-WA
1WS-5 Warning Sounds
WM-5 Melodies
WA-5 Alarm Sounds
(Max. 85dB)
DC12V0.310A
0.42kg R-Red
DC24V0.180A
0.42kg
2DC12V0.400A
0.46kg R-Red
 G-Green
DC24V0.230A
0.46kg
3DC12V0.490A
0.50kg R-Red
A-Amber
 G-Green
DC24V0.280A
0.50kg
4DC12V0.580A
0.54kg R-Red
A-Amber
 G-Green
 B-Blue
DC24V0.330A
0.54kg


QT50L : Steady Module   QT50LF : Steady/Flashing Module
+
Base Module(BS) + Pole Module(PB)
+

Signal Sound Module
WS Warning Sounds
WM Melody
WA Alarm


Sound Tone Combination of Standard Product

Sound Category Sound Tone Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat

  • Product Feature
  • Product Specifications
  • Download
  • Accessories

Download

※ If the PDF file does not display properly, please use [Adobe Reader], the official PDF viewer.

  • Product Feature
  • Product Specifications
  • Download
  • Accessories

Accessories

  • SCREW & NUT
    SCREW & NUT
  • LB18
    LB18
  • LW18
    LW18
  • QZ18
    QZ18
  • SZ18
    SZ18
  • QL18
    QL18
  • SL18
    SL18

※ Please refer to technical information page for detailed specification including measurement.
