STND Series
Copied to clipboard

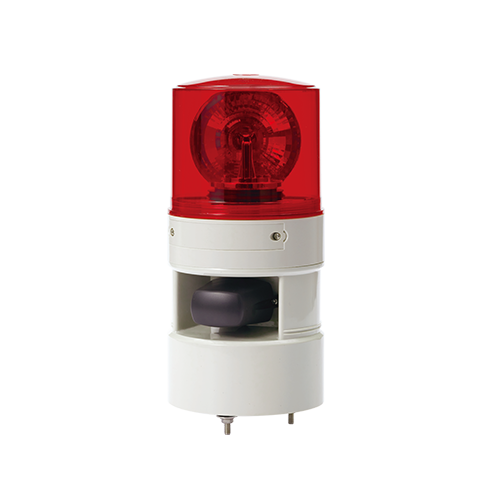

STND125LR
Max.105dB
- Product Feature
30 صوتًا مُدمجًا (Max.105dB at 1m), 30 صوتًا محددًا بواسطة المُستخدم بتنسيق MP3 (Max.98dB at 1m)
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Lens Diameter : Ø115 │Body Diameter : Ø119 │Height : 250
- Materials
Lens-AS │Housing-ABS │Reflector-Heat resistant ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Combination of warning light and horn allows transmission of both visual and audible signals together
- Appropriate sound tones can be chosen depending on the various working environments among the various type of available sound tones
- Sound tone selector and volume controller in front of the device allows convenient use
- SDcard type allows user defined sound tone
- Built-in 30 sound tones, support binary and bit input modes
- Bit input mode consists of 5 sound types with 6 groups. Choose one of the groups to play 5 sounds from that group.(MP3 is separate from the 6 groups)
- Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector
- Revolving speed : 120-140RPM
- Ambient operating temperature-20°C to +50°C
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| STND125LR | DC12V | 650mA | · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | | 1.35kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 450mA | 1.35kg | ||||
| AC110V-220V | Max.180mA | 1.73kg |
ㆍExcellent omni-directional visibility with LED light collecting system and special multifaceted reflector
※ CE compliant: DC24V
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
※ Please refer to the operating manual for applicable sd card.
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Special Warning Sounds (2nd Group) | Rel rel rel Slow Ambulance PI-PO Wye yong Wye yong Phone ring 2 Fire.A-ANG |
||
| 5 Special Warning Sounds (3nd Group) | Oit Oit Pi o Pi o Slow Di o Di o Li long Li ling 911 Siren |
