STG Series
Copied to clipboard
STG60L
- Product Feature
Buzzer volume controllable type (Max.85dB at 1m) : optionally available
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø60 │Height : 333-541
- Materials
Lens-AS │Housing-ABS │Pole-Al
- Protection rating
IP54 (Buzzer type)│IP65 (Standard)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

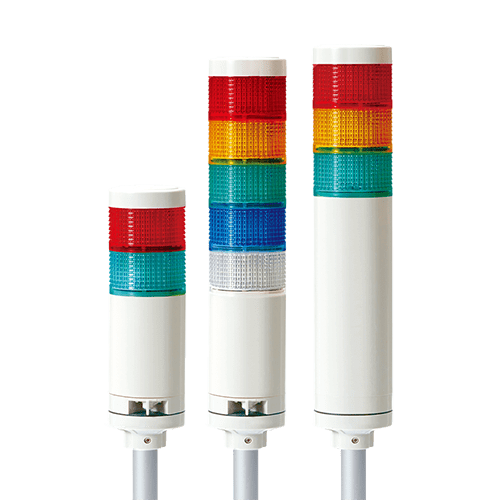

Product Feature- Ø60mm LED steady/flashing tower lights
- The special vertical contact structure of the lens allows for easy assembly and disassembly
- Built-in buzzer available upon request: audible signal can be delivered
- Transistors can be connected and can be operated on PLC directly
- Customized color arrangement available(LED light distribution system and lens is integrated into a combined structure)
- Standard model and built-in buzzer model can be used by selecting the specifications suitable for the operating environment.
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- 24VDC UL listed model is optionally provided
- M12 connector type: Standard entry cable included. Can customize the product with the M12 connector if requested(Female M12 connector is not provided)
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| STG60L Steady STG60L-BZ Steady /w built-in buzzer STG60LF Steady/Flashing STG60LF-BZ Steady/Flashing/w built-in buzzer | 1 | DC12V DC24V AC110V-220V | | 0.40kg 0.40kg 0.48kg |  R-Red |
| 2 | DC12V DC24V AC110V-220V | 0.43kg 0.43kg 0.51kg | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V-220V | 0.46kg 0.46kg 0.54kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V-220V | 0.49kg 0.49kg 0.57kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V AC110V-220V | 0.52kg 0.52kg 0.61kg | R-Red A-Amber G-Green B-Blue W-White |
※ CE compliant: DC12, DC24V, UL Listed: DC24V
Light source/buzzer current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V-220V |
|---|---|---|---|
Light source current(1 layer) | 85mA | 60mA | Max.50mA |
| Buzzer current | 40mA | 75mA | Max.60mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
|
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
