STG Series
Copied to clipboard

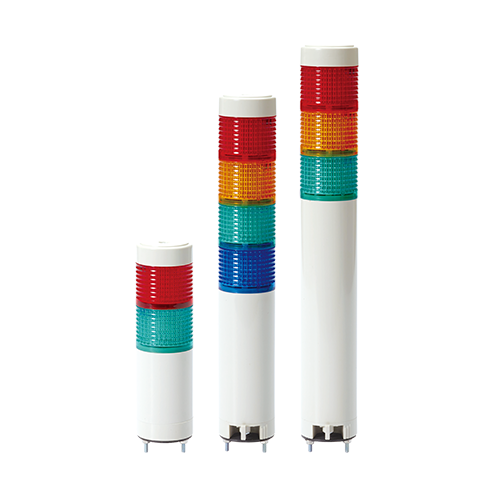

STG40ML
LED Steady/Flashing Tower Lights
Max.85dB
- Product Feature
نوع جهاز الإنذار الذي يمكن التحكم في مستوى صوته (Max. 85dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V,24V│AC:110V-220V
- Dimension
Diameter : Ø40 │Height : 106-331
- Materials
العدسات-AS │المبيت-ABS │Pole-Al
- Protection rating
IP65 (Standard)│IP54 (Buzzer type)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø40mm LED steady/flashing tower lights
- The special vertical contact structure of the lens allows for easy assembly and disassembly
- Standard model and built-in buzzer model can be used by selecting the specifications suitable for the operating environment.
- Transistors can be connected and can be operated on PLC directly
- Customized color arrangement available(LED light distribution system and lens is integrated into a combined structure)
- Flashing rate : 60-80 flashes/min
- 24VDC UL listed model is optionally provided
- M12 connector type: Standard entry cable included. Can customize the product with the M12 connector if requested(Female M12 connector is not provided)
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| STG40ML Steady STG40ML-BZ Steady /w built-in buzzer STG40MLF Steady/Flashing STG40MLF-BZ Steady/Flashing /w built-in buzzer | 1 | DC12V DC24V AC110V-220V | | 0.12kg 0.12kg 0.18kg |  R-Red |
| 2 | DC12V DC24V AC110V-220V | 0.15kg 0.15kg 0.21kg | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V-220V | 0.18kg 0.18kg 0.24kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V-220V | 0.21kg 0.21kg 0.27kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V AC110V-220V | 0.24kg 0.24kg 0.30kg | R-Red A-Amber G-Green B-Blue W-White |
※ CE compliant: DC12V, DC24V, UL Listed: DC24V
Light source/buzzer current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V-220V |
|---|---|---|---|
Light source current(1 layer) | 95mA | 55mA | Max.45mA |
| Buzzer current | 50mA | 75mA | Max.55mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
|
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
