S100D/S125D/STD Series
Copied to clipboard
STDL
Max.105dB
- Product Feature
15 صوتًا مُدمجًا (Max. 105dB at 1m), 5 أصوات محددة بواسطة المُستخدمs (Max. 95dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø80 │Body Diameter : Ø119 │Height : 232-512
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- LED steady/flashing mode
- Available in customized color arrangements
- Flashing rate : 60-80 flashes/min

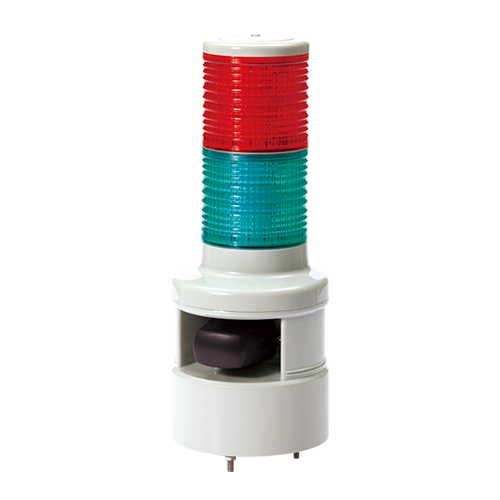

- Ø80mm stackable light and electric horn combination provides both audible and visual signaling capability in one unit
- Can select the proper tone from a variety of built-in sound options to fit your application needs
- WV type : Input audio messages needs to be provided by the customer prior to manufacturing
- Multiple stacked light segments conserve space
- Standard color arrangements
1 Layer :
R-Red
2 Layers : R-Red
G-Green
3 Layers : R-Red
A-Amber G-Green
4 Layers : R-Red A-Amber G-Green
B-Blue
5 Layers : R-Red A-Amber G-Green B-Blue
W-White - Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -30°C to +50°C
- Protection ratings : IP54
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| STDL Steady STDLF Steady/Flashing | 1 | DC12V | • WS-5 Warning sounds: Max.105dB • WM-5 Melodies: Max.103dB • WA-5 Alarms: Max.103dB • WV-5 Customizable sounds: 91-100dB | | DC-0.80kg AC-1.39kg | R-Red |
| DC24V | ||||||
| AC110V | ||||||
| AC220V | ||||||
| 2 | DC12V | DC-0.91kg AC-1.36kg | R-Red G-Green | |||
| DC24V | ||||||
| AC110V | ||||||
| AC220V | ||||||
| 3 | DC12V | DC-1.05kg AC-1.49kg | R-Red A-Amber G-Green | |||
| DC24V | ||||||
| AC110V | ||||||
| AC220V | ||||||
| 4 | DC12V | DC-1.16kg AC-1.61kg | R-Red A-Amber G-Green B-Blue | |||
| DC24V | ||||||
| AC110V | ||||||
| AC220V | ||||||
| 5 | DC12V | DC-1.30kg AC-1.74kg | R-Red A-Amber G-Green B-Blue W-White | |||
| DC24V | ||||||
| AC110V | ||||||
| AC220V |
※ CE compliant: DC24V
※ Max.built-in volume feature is based on WS-Ch3 / WM-Ch4 / WA-Ch1.
※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.
※ Please refer to [Sound tone and combination for standard product] on this catalogue for detailed sound tone specification.
Light source/signal sound current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current(1 layer) | 160mA | 95mA | 70mA | 55mA |
| Signal sound current | 280mA | 210mA | 85mA | 45mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
