STC Series
Copied to clipboard

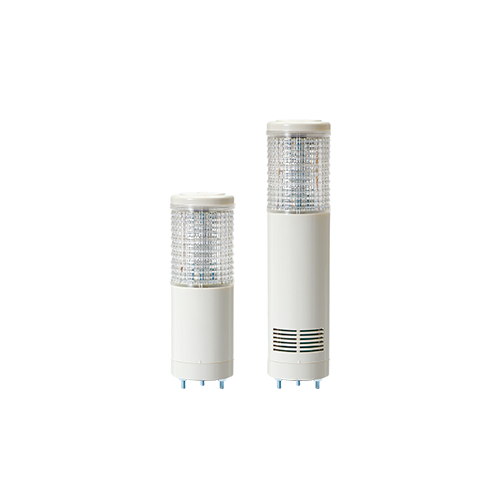

STC56ML
LED Steady/Flashing Tower Lights
Max.90dB
- Product Feature
Built-in buzzer type (Max.90dB at 1m) : optionally available
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Diameter : Ø56mm │Height : 157-287
- Materials
Lens-PC │Housing-ABS │Pole-Al
- Protection rating
IP44 (Standard)│IP23 (Buzzer type)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Economical tower light model that can deliver two to three signals with one layer
- Long product lifetime of over 20,000 hours with the application of a high intensity multiple color LED light source
- Can select from size of Ø45mm, Ø56mm, and Ø80mm to fit your sophisticated application needs
- A variety of Mounting bracket selections for the pole mount type to fit your location and mounting needs
- Customized 2 buzzer sound type available
- M12 connector type is optionally available(Female M12 connector is not provided)
- Standard model and built-in buzzer model can be used by selecting the specifications suitable for the operating environment.
- Compliant with RoHS directive
Product Specifications
| Model number | Colors | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
STC56ML Steady STC56ML-BZ Steady /w built-in buzzer STC56MLF Steady/Flashing STC56MLF-BZ Steady/Flashing /w built-in buzzer | 2 | DC12V DC24V AC110V AC220V | | 0.29kg |  R-Red G-Green |
| 3 | DC12V DC24V AC110V AC220V | 0.49kg | R-Red A-Amber G-Green |
※ CE compliant : DC24V
Light source/buzzer current(Each LED module’s current)
Voltage | DC12V | DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current | 240mA | 210mA | 50mA | 25mA |
| Buzzer current | 40mA | 75mA | 40mA | 20mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
|
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
