STA Series
Copied to clipboard
STA35SL
- Voltage
DC:12V,24V
- Dimension
Diameter : Ø35mm │Height : │85-265
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

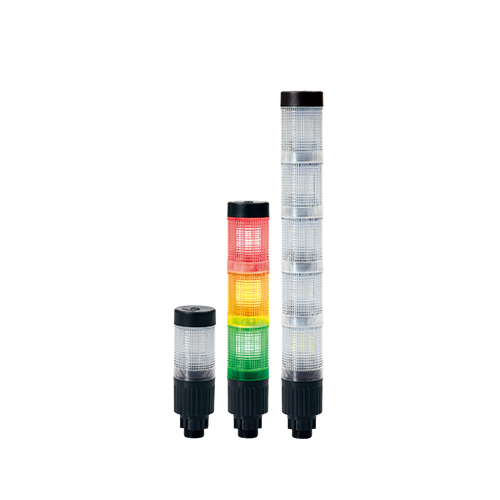

Product Feature- Ø35mm direct mount tower lights
- Excellent visibility by using a high brightness LED with a special diffusion lens
- Lens maintains a semi-transparent color when not emitting the specific color of the signal under operation
- Steady mode only (can operate flashing mode with external control) with fixed user selected color arrangement
- Easy mounting with the bolts/ screws located at the bottom of the product
- Materials : Lens-AS, Housing-ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| STA35SL Steady | 1 | DC12V DC24V | | 0.60kg |  R-Red |
| 2 | DC12V DC24V | 0.85kg | R-Red G-Green | ||
| 3 | DC12V DC24V | 1.05kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V | 1.30kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V | 1.53kg | R-Red A-Amber G-Green B-Blue W-White |
※ CE Compliant: DC24V
Light source current(based on 1 layer)
Voltage | DC12V | DC24V |
|---|---|---|
Light source current(1 layer) | 100mA | 50mA |
