STA Series
Copied to clipboard
STA25SLM
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Diameter : Ø25mm │Height : │368-488
- Materials
العدسات-AS │المبيت-Al
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

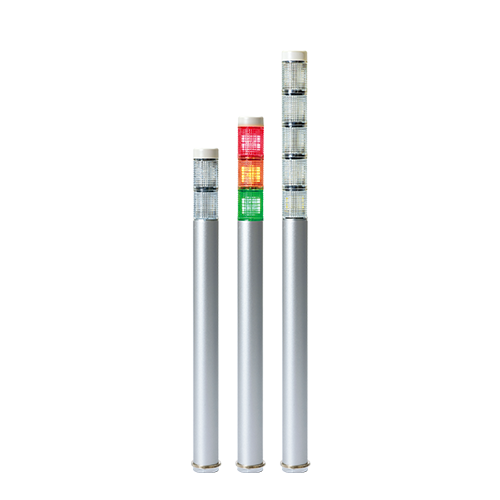

Product Feature- Ø25mm direct mount tower lights
- Aesthetically pleasing design with aluminum housing
- Excellent visibility by using a high brightness LED with a special diffusion lens
- Lens maintains a semi-transparent color when not emitting the specific color of the signal under operation
- Steady mode only with fixed user selected color arrangement (can operate flashing mode with external contact)
- Ambient operating temperature : -30°C to +50°C
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| STA25SLM Steady | 1 | DC12V DC24V AC110V AC220V | | 0.19kg |  R-Red |
| 2 | DC12V DC24V AC110V AC220V | 0.21kg | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V AC220V | 0.23kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V AC220V | 0.24kg | R-Red A-Amber G-Green B-Blue | ||
| 5 | DC12V DC24V AC110V AC220V | 0.26kg | R-Red A-Amber G-Green B-Blue W-White |
※ CE Compliant: DC24V, UL Listed: DC24V
Light source current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current(1 layer) | 70mA | 35mA | 25mA | 20mA |
