SSL Series
Copied to clipboard

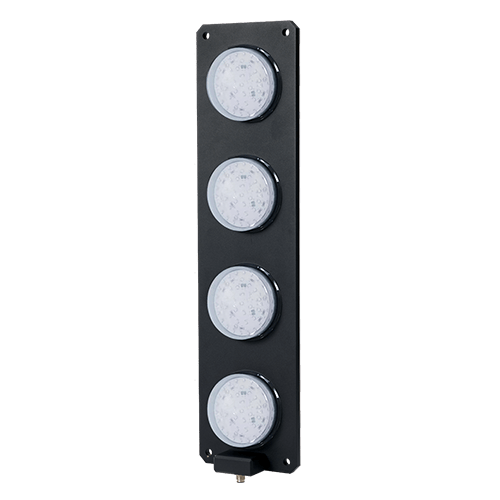

SSL400W
- Voltage
DC:24V│AC:110V,220V
- Dimension
Lens Diameter : Ø93 │Height : 180-615 │Depth : 43
- Materials
العدسات-PC │المبيت-Al
- Protection rating
IP68
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Special anti-reflective lens applied to avoid mistaking the reflected sun light as a signal light
- Suitable for container spreader, harbor loading equipment, and outdoor conveyor applications
- Superior durability in extreme vibration and shock thanks to molding assembly between aluminum housing and lens
- Customized color arrangement available(Lens color configuration is initiated from the side of cable entry)
- Ambient operating temperature : -30℃ ~ +60℃
- Protection rating : IP68 (IEC60529)
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Cable Entry | Color |
|---|---|---|---|---|---|---|
| SSL400W | DC24V | 150mA | | 2.95kg | Select one option between M12-5PIN(male) and C10-Cable |  R-Red A-Amber G-Green B-Blue |
| AC110V | 45mA | 3.00kg | ||||
| AC220V | 45mA | 3.00kg |
※ CE compliant: DC24V
※ M12-5PIN connector: Female M12 connector is not provided.
SSL series Vibration and Shock Test Conditions
| Axial direction | Direction X | Direction Y | Direction Z |
|---|---|---|---|
| Vibration test conditions | 10-38 Hz, 3.5mm 38-500 Hz, 20g 1 oct/min, 2 hours | 10-38 Hz, 3.5mm 38-500 Hz, 20g 1 oct/min, 2 hours | 10-38 Hz, 3.5mm 38-500 Hz, 20g 1 oct/min, 2 hours |
| Shock test conditions | 50g 6 ms ±1000 shocks | 50g 6 ms ±1000 shocks | 50g 6 ms ±1000 shocks |
