SR Series
Copied to clipboard
SRL
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Diameter : Ø83mm │Height : 162-350
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø80mm stacked structure
- Multi signal transmissions capable in 1 signal light
- Qlight’s exclusive LED light distribution system with multi-tiered reflector spreads light evenly throughout the surface of the 94mm height special diffusing lens
- Fixed user selected color arrangement

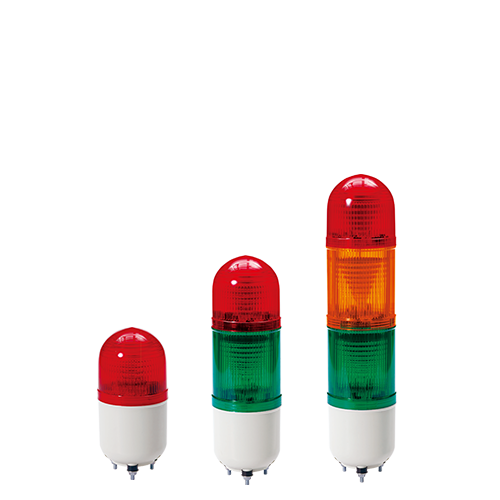

- Standard color
1st layered -
R-Red
2nd layered - R-Red
G-Green
3rd layered - R-Red
A-Amber G-Green - Flashing rate : 60-80 flashes/min(Built-in switch for selection between steady/ flashing mode)
- Materials : Lens-AS, Body-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SRL | 1 | DC12V-24V | - | 0.23kg | R-Red |
| AC110V | 0.45kg | ||||
| AC220V | 0.45kg | ||||
| 2 | DC12V-24V | 0.37kg | R-Red G-Green | ||
| AC110V | 0.70kg | ||||
| AC220V | 0.70kg | ||||
| 3 | DC12V-24V | 0.53kg | R-Red A-Amber G-Green | ||
| AC110V | 0.89kg | ||||
| AC220V | 0.89kg |
• Qlight’s exclusive LED light distribution system with multi-tiered reflector spreads light evenly throughout the surface of the 94mm height special diffusing lens
• Fixed user selected color arrangement
• Flashing rate: 60-80 flashes/min(Built-in switch for selection between steady/flashing mode)
• Ambient operating temperature: -30°C to +50°C
• Compliant with RoHS directive
Light source current(based on 1 layer)
Voltage | DC12V~24V | AC110V | AC220V |
|---|---|---|---|
Light source current(1 layer) | Max.125mA | 65mA | 35mA |
