SPNA-TI
- Product Feature
15 Built-in Sounds (Max. 118dB at 1m), 5 Alarms (Max. 115dB at 1m), 5 User-Defined Voice (Max. 113dB at 1m)
- Voltage
DC:24V│AC:120V,230V
- Dimension
Horn Diameter : Ø134 │Height : 159 │Length : 327
- Materials
Horn-SUS316L │Housing-Al
- Protection rating
Ex db IIC T6 Gb│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

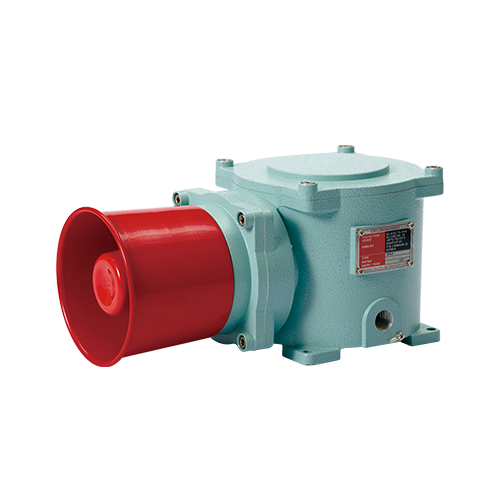

Product Feature- Explosion proof alarm horn sounder
Telephone Initiated signal sounder triggers built-in alarm sound that is activated by 25Hz telephone ring signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- Various sound tones can be selected : warning sound, alarm, melody
- Aluminum housing provides excellent durability
- Equipped terminal box for power line wiring in housing
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : 95VDC to 130VDC
- Sound volume : Max 118dB at 1m(Volume adjustable)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Housing-Al, Protection cage-SUS316L
- Certificates : IECEx, ATEX
- Protection rating
IECEx - Ex db IIC T6 Gb, IP66
ATEX -
II2G Ex db IIC T6 Gb, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
II2G Ex db IIC T6 Gb, IP66Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificate | Weight |
|---|---|---|---|---|---|
| SPNA-TI | DC24V | 830mA | • WS-5 Warning sounds : 118dB • WP-5 Special warning sounds : 118dB • WM-5 Melodies : 118dB • WA-5 Alarms : 116dB • WV-5 Customizable voices : 110-115dB | | 6.09kg |
| AC120V | 190mA | 6.44kg | |||
| AC230V | 110mA |
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
|
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
|
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
|
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
|
| 5 Customizable voices |
