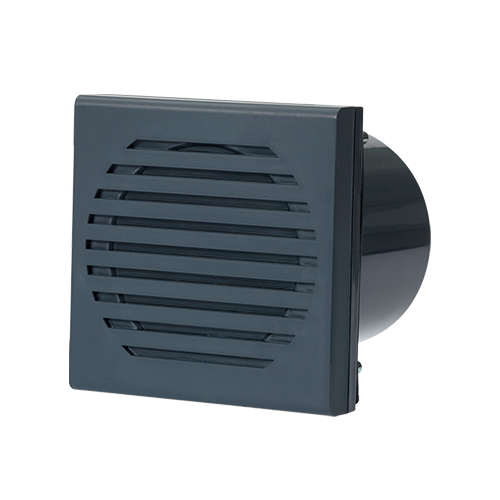

SPK/QMPS Series
Copied to clipboard
SPK
- Product Feature
15 صوتًا مُدمجًا (Max.90dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Ø80×80mm │Depth : 75
- Materials
Housing-ABS │Cover-ABS
- Protection rating
IP23
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- General compatibility by adopting general equipment (62×62mm) mount holes
- Allowing volume control without dismantling the device
- Various sound patterns such as warning sound, melodies, and alarms can be chosen depending on the message use case

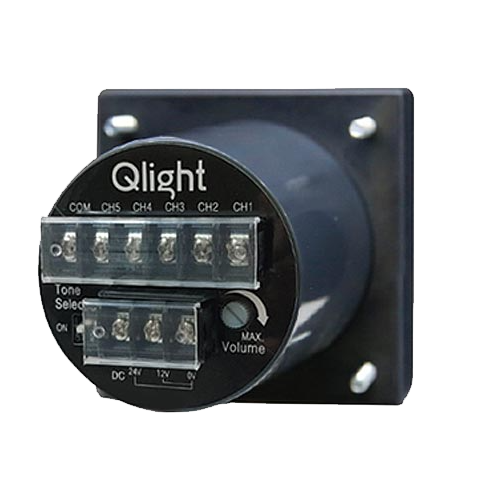

- Wiring terminal on the back side of the product
- Ambient operating temperature : -25°C to +50°C
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Sound pattern and volume | Certificates | Weight |
|---|---|---|---|---|---|
| SPK | DC12V | 290mA | · WS-5 Warnings: Max.90dB · WM-5 Melodies: Max.90dB · WA-5 Alarms: Max.90dB | | 0.19kg |
| DC24V | 200mA | ||||
| AC110V | 35mA | 0.21kg | |||
| AC220V | 20mA |
※ CE compliant: DC24V
※ Max.built-in volume feature is based on WS-Ch1 / WM-Ch4 / WA-Ch4.
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
