SNES Series
Copied to clipboard
SNESLR
- Product Feature
جهاز إنذار مُدمج (Max.105dB at 1m)
- Voltage
DC:12V,24V│AC:120V,230V
- Dimension
Cage Diameter : Ø152 │Height : 238 │Length : 183
- Materials
العدسات-الزجاج المُعالج │المبيت-Al
- Protection rating
Ex db IIC T6 Gb IP66│Ex db op is IIC T6 Gb (with LED)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

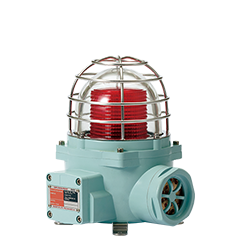

Product Feature- Light weight and compact explosion proof signal beacon / light with siren buzzer
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector
- Revolving speed : 120-140RPM
- Integrated housing and terminal box model
- Sound type and sound volume : Siren buzzer- Max.105dB at 1m
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Protection rating
IECEx - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb (with LED)
ATEX –
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb (with LED)
KCs - Ex d IIB+H2 IP66 T6
NEPSI, CCC - Ex db IIC T6 Gb
TIIS - IIC T6 Gb - Ambient operating temperature
-40°C ≤ Tamb ≤ +60°C
-40°C ≤ Tamb ≤ +55°C(KCs)
-20°C ≤ Tamb ≤ +55°C(TIIS)
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb (with LED)Product Specifications
| Model number | Voltage | Current | Sound pattern/ dB | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| SNESLR | DC12V | 370mA | • Warning sound(Buzzer) : Max.105dB | | 3.60kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 370mA | 3.60kg | ||||
| AC120V | 95mA | 4.30kg | ||||
| AC230V | 50mA | 4.30kg |
※ Customization : 48VDC voltage product (excluding KCs, TIIS)
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 1 Warning Sounds | Emergency WA-U(YELP)Sound |
