SNES-S-TI
- Product Feature
Built-in Buzzer (Max. 105dB at 1m)
- Voltage
DC:12V,24V│AC:120V,230V
- Dimension
Cage Diameter : Ø152 │Height : 236 │Length : 182.5
- Materials
Lens-Tempered glass │Housing-Al
- Protection rating
Ex db IIC T6 Gb IP66│Ex db op is IIC T6 Gb (with LED)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

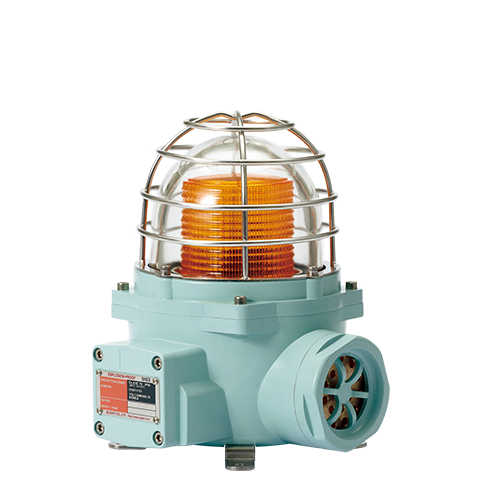

Product Feature- Light weight and compact explosion proof signal beacon with siren buzzer
- Telephone Initiated Signal beacon triggers built-in alarm sound that is activated by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Flashing rate : 60-80 flashes/min
- Sound type and sound volume : Siren buzzer- Max 105dB at 1m
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : 95VDC to 130VDC
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Inner lens-PC, housing-Al, Protection cage-STS316L, Reflector-PC, Reflector-Heat resistant ABS, Bracket-STS316L
- Certificates : IECEx, ATEX
- Protection rating
IECEx - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
ATEX -
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
II2G Ex db IIC T6 Gb, Ex db op is IIC T6 GbProduct Specifications
| Model number | Voltage | Current | Bulb | Sound pattern and volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SENS-S-TI | DC12V | 590mA | 220V-350V | BGA2120-BBC I Type | 47 | · WS-5 Warning sounds : Max.105dB | | 3.60kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 450mA | ||||||||
| AC120V | 140mA | 4.25kg | |||||||
| AC230V | 80mA | ||||||||
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Warning Sounds | Emergency WA-U(YELP)Sound |
