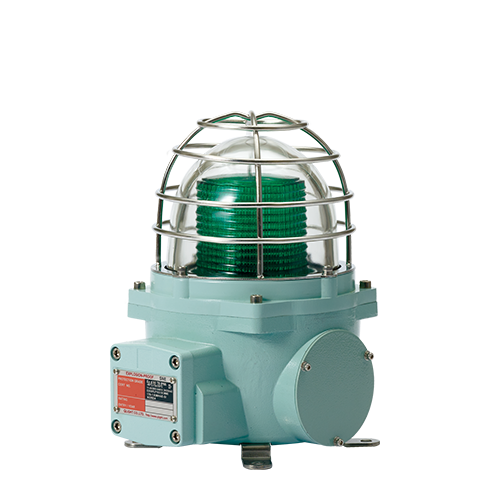

SNE-S-TI
- Voltage
DC:12V,24V│AC:120V,230V
- Dimension
Cage Diameter : Ø152 │Height : 238 │Length : 182.5
- Materials
Lens-Tempered glass │Housing-Al
- Protection rating
Ex db IIC T6 Gb IP66│Ex db op is IIC T6 Gb (with LED)
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Light weight and compact explosion proof warning lights with a variety of light source selections from bulb, LED, and xenon lamp
- Telephone Initiated Signal beacon triggers built-in alarm sound that is activated by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : 95VDC to 130VDC
- Lamp connector fastening structure allows for convenient lamp replacement
- Excellent long-distance visibility with strong flashing signal diffusion
- Flashing rate : 60-80 flashes/min
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Inner lens-PC, housing-Al, Protection cage-STS316L, Reflector-PC, Reflector-Heat resistant ABS, Bracket-STS316L
- Certificates : IECEx, ATEX
- Protection rating
IECEx - Ex d IIC T6 Gb, IP66
ATEX -
II2G Ex d IIC T6, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
II2G Ex d IIC T6, IP66Product Specifications
| Model number | Voltage | Current | Xenon lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| SNE-S-TI | DC12V | 480mA | 200V-350V | BGA2120-BBS I Type | 47 | | 3.60kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 300mA | |||||||
| AC120V | 100mA | 4.25kg | ||||||
| AC230V | 80mA | |||||||
