SMDS
SMDS

SED/SD/SMD Series Copied to clipboard

SMDS

Signal Beacon and Electronic Sounder Combinations for Vessels and Heavy Industry Applications

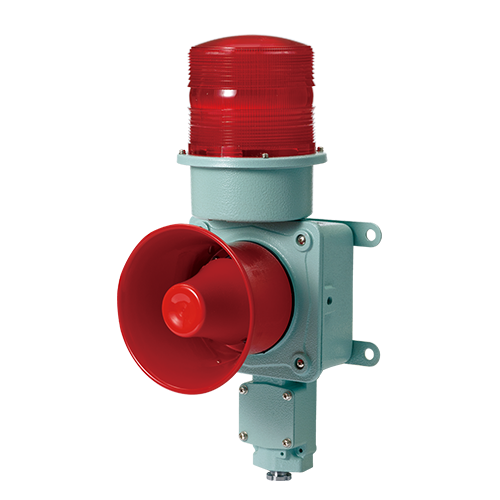

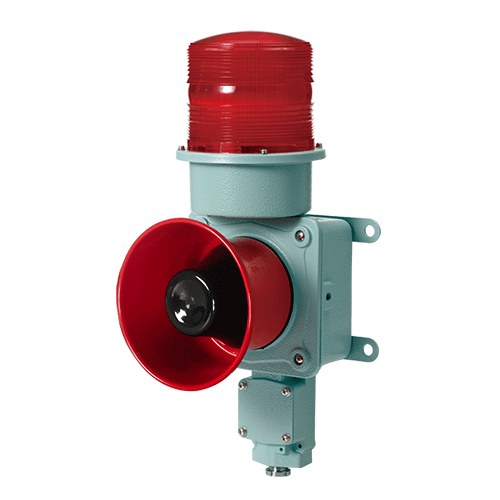

Xenon Strobe Signal Beacon and Electronic Sounder Combination Max.120dB
Xenon Lamp Strobe TypeIP66-30℃ ~ +50℃Horn120dBNPN-Transistor Type
  • Product Feature

    20 صوتًا مُدمجًا (Max. 120dB at 1m), 5 أصوات محددة بواسطة المُستخدم (Max. 115dB at 1m)

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø138 Height : 462 Depth : 210

  • Materials

    العدسات-PC المبيت-Al

  • Protection rating

    IP66

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Wall mount signal beacon & electronic sounder combinations for marine and heavy industries applications
  • Convenient lamp exchange by adopting a connector type lamp installation
  • Aluminum housing and polycarbonate lens material provides excellent impact and shock resistance
  • Excellent hermetic structure that block water and dust
  • Attached terminal box enables easy wiring
  • Can adjust sound volume and select sound pattern with the switches built inside the products
  • Cable entry : 1/2″ PF
  • Materials : Lens-PC, Housing-Al, Protection cage-STS316L
  • Standard housing color : MUNSELL No. 7.5GBG 7/2
  • Flashing rate : 60-80 flashes/min
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP66

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentXenon lamp
Sound pattern and volumeCertificatesWeightColor
SpecStandardParts no
SMDS
SMDSP
DC12V2.82A
200V-550VEUB0641-1A(G)

U type
48

·WS-5 Warning sounds: Max.120dB

·WP-5 Special warning sounds

: Max.120dB

·WM-5 Melodies: Max.115dB

·WA-5 Alarms: Max.118dB

·WV-5 Customizable voices: 109-117dB

-· SMDS
DC-5.83kg
AC-6.21kg

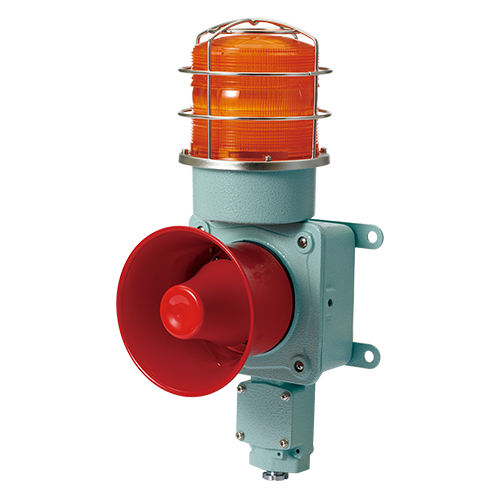

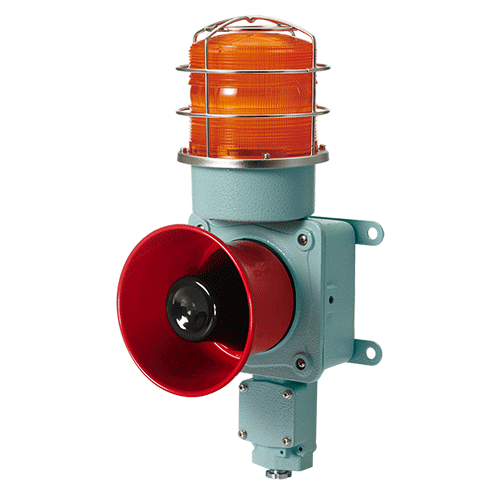

· SMDSP
DC-6.12kg
AC-6.50kg
R-Red
A-Amber
G-Green
B-Blue
DC24V1.4A
AC110V300mA
AC220V200mA

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Customizable voices

Ch1
Ch2
Ch3
Ch4
Ch5

  • Product Feature
  • Product Specifications
  • Download

Download
