SMCL Series
Copied to clipboard

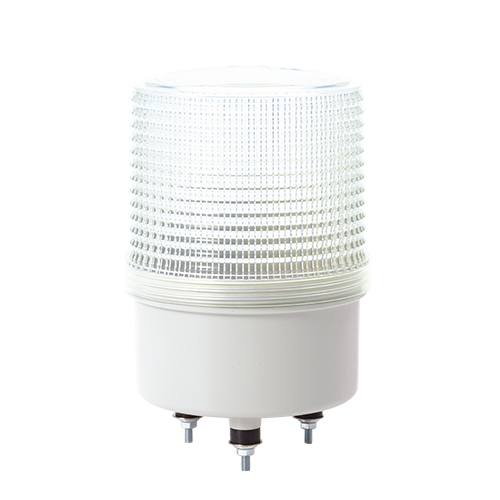

SMCL100
LED Steady/Flashing Signal Light
Max.90dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø100(Approx.) │Height : 152
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- LED light distribution system with multi-tiered reflector provides uniformed light signals throughout the entire lens
- Ideal for locations where space requirements need one warning light to convey multiple color signals
- The subdued light provides a comfortable and stable viewing condition for operation in close proximity
- Built-in buzzer available(Volume : Max. 90dB at 1m)
- Can select between steady/ flashing mode
- Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Body-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
- Certificates : CE Compliant
- Compliant with RoHS direct
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SMCL100 | DC12V-24V | Max.470mA | | 0.23kg |  R-Red A-Amber G-Green |
| AC110V | 140mA | 0.32kg | |||
| AC220V | 70mA | 0.32kg |
• SMCL type can be wired with external contacts and transistor
• Wiring to transistor, use the NPN transis- tor. Please wire properly based on wiring instructions
• External Power line - UL1015 AWG18(0.75sq) x 2C 400mm
• External signal line - UL1007 AWG22(0.3sq) 400mm
• This product can be wired regardless of polarity.
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Sound |
|---|---|---|
| 1 Buzzer Sound | Pi-- Pi-- slow |
|
| 2 Buzzer Sounds (Customized type) |
Pi--- Pi--- moderate Pi pi pi short |
|
| Pi- buzzer continue (Customized type) |
Pi--- continue |
