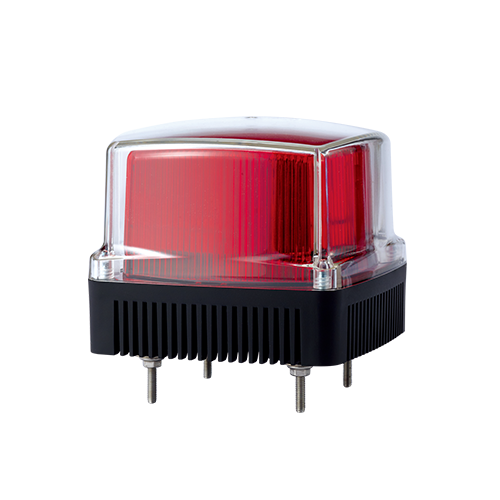

SKT Series
Copied to clipboard
SKTL
- Voltage
DC:12V-24V
- Dimension
Cubic : □105×105 │Height : 88
- Materials
العدسات-PC │المبيت-PC
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- High brightness LED with special light filter structure provides clear signal light transmission even in outdoor environments with intense sunlight
- Excellent vibration and impact resistance with use of polycarbonate lens
- Lens with special coating material maintains transparency even when exposed to harsh environments where scratches, dust and direct sunlight is possible
- Water resistant, dustproof, and weather resistant structure provides excellent durability under harsh environments such as rainstorms, frost, and intense heat
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SKTL | DC12V-24V | Max.880mA | | 0.35kg |  R-Red A-Amber G-Green B-Blue W-White |
ㆍLight effect : Strobe
※ CE Certificates: DC12V-24V
