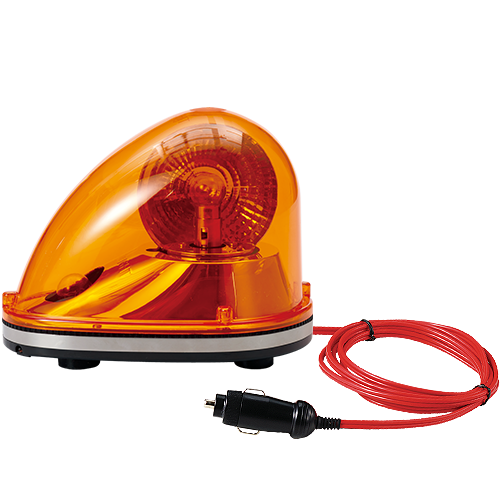

S Series for vehicle
Copied to clipboard
SKM/ SKMH
- Voltage
DC:12V,24V
- Dimension
Height : 138 │Length : 183
- Materials
العدسات-PC │المبيت-PC
- Protection rating
IP54
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Adopts a special power transmission system that reduces noise and wear
- Metal body structure inside the cover gives the product a stylish look
- Contains a spare bulb inside the product
- Securely attached to the vehicle’s surface by 4 strong magnets
- SKMH : Features super-bright high intensity with 35W halogen bulb
- Materials : Lens-PC, Housing-PC, Reflector-PC/STS
- Revolving speed : 120-140RPM
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP54
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| SKM | DC12V | 1.55A | 12V15W | G23 15S | 17 | - | 0.58kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 765mA | 24V15W | G23 15S | 18 | 0.58kg | |||
| SKMH | DC12V | 3.5A | 12V35W | 15S halogen | 39 | 0.59kg | ||
| DC24V | 1.85A | 24V35W | 15S halogen | 40 | 0.59kg | |||
ㆍ4 strong magnets enable secure attachment to the vehicle
ㆍSKH: Features super-bright high intensity with 35W halogen bulb
