SHD Series Copied to clipboard

SHDL

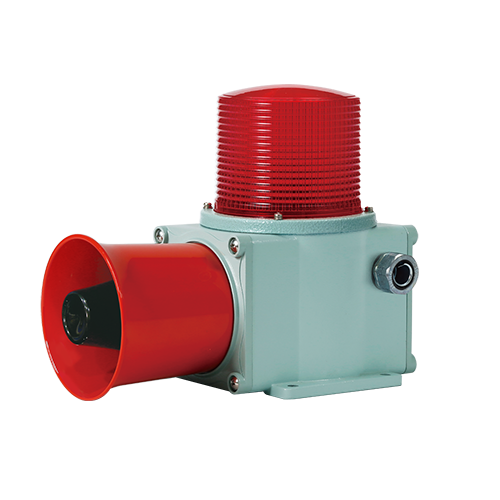

LED Steady/Flashing Signal Beacon & Electronic Sounder Combination Max.114dB
LED Steady/Flashing TypeIP66-30℃ ~ +50℃Horn114dBNPN-Transistor Type
  • Product Feature

    20 صوتًا مُدمجًا (Max.114dB at 1m), 5 أصوات محددة بواسطة المُستخدم (108-113dB at 1m)

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø119 Height : 227 Length : 255

  • Materials

    Lens-PC Housing-Al Protection cage-STS316L Reflector-PC Reflector-Heat resistant ABS

  • Protection rating

    IP66

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Warning light and electric horn combination models for vessels and heavy industries applications
  • Aluminum housing and polycarbonate lens material provides excellent durability under seismic conditions
  • Excellent hermetic structure that blocks water and dust
  • Superior impact and shock resistance

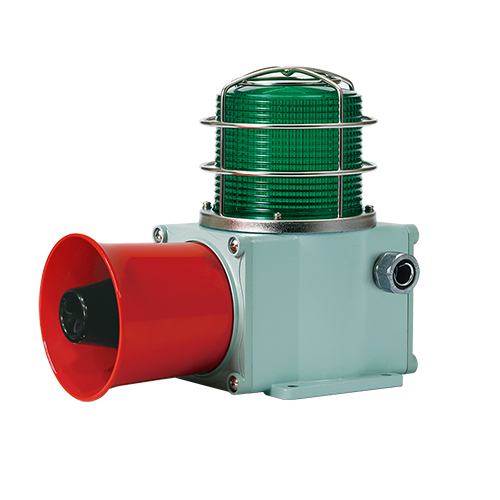

  • Equipped with a wire guard
  • Terminal box located inside the housing
  • Can adjust sound volume and select sound pattern with the switches built inside the products
  • Uniform and clear light diffusion with multi layered LED light distribution reflector
  • Cable entry : 1/2″ PF
  • Standard housing color : MUNSELL No. 7.5BG 7/2
  • Flashing rate : 60-80 flashes/min(Built-in steady/flashing selection switch)
  • Ambient operating temperature : -30°C to +50°C
  • Certificates : CE, CCS

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model
number
VoltageCurrentSound pattern and volumeCertificatesWeightColor
SHDL
SHDLP
DC12V2A
•WS-5 Warning sounds: Max.114dB
•WP-5 Special warning sounds: Max.114dB
•WM-5 Melodies: Max.110dB
•WA-5 Alarms: Max.114dB
•WV-5 Customizable voices: 108-113dB



SHDL
DC-3.02kg
AC-3.39kg

SHDLP
DC-3.27kg
AC-3.64kg
 R-Red
A-Amber
G-Green
 B-Blue
DC24V1.5A
AC110V370mA
AC220V200mA

※ CE compliant: DC24V, AC220V

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Customizable voices

Ch1
Ch2
Ch3
Ch4
Ch5
