SHD2
SHD2

SHD Series Copied to clipboard

SHD2

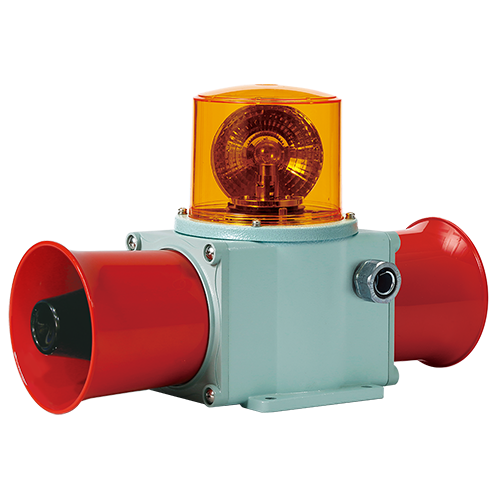

Bulb Revolving Signal Beacon and Electronic Sounder Combination Max.114dBx2
Bulb Revolving TypeIP66-20℃ ~ +50℃Horn114dBNPN-Transistor Type
  • Product Feature

    20 صوتًا مُدمجًا (Max.114dB at 1m)x2, 5 أصوات محددة بواسطة المُستخدم (108-113dB at 1m)x2

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø119 Height : 227 Length : 343

  • Materials

    Lens-PC Housing-Al Protection cage-STS316L Reflector-PC Reflector-Heat resistant ABS

  • Protection rating

    IP66

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Signal beacon & electronic sounder combinations for marine and heavy industries applications
  • Aluminum housing and polycarbonate lens material provides excellent durability under seismic conditions
  • Excellent hermetic structure that blocks water and dust
  • Superior impact and shock resistance

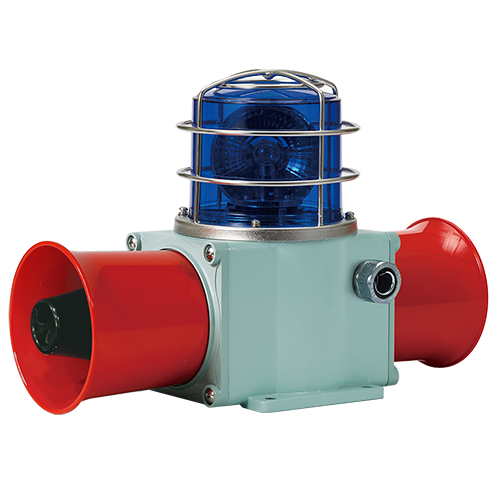

  • Equipped with a wire guard
  • Terminal box located inside the housing
  • Can adjust sound volume and select sound pattern with the switches built inside the products
  • Cable entry : 1/2″ PF
  • Standard housing color : MUNSELL No. 7.5BG 7/2
  • Revolving speed : 120-140RPM
  • Ambient operation temperature : -20°C to +50°C

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentBulbSound pattern and volumeCertificatesWeightColor
SpecStandardParts no
SHD2
SHD2P
DC12V4.5A
12V15WG23 15S17•WS-5 Warning sounds: Max.114dBx2
•WP-5 Special warning sounds: Max.114dBx2
•WM-5 Melodies: Max.110dBx2
•WA-5 Alarms: Max.114dBx2
•WV-5 Customizable voices: 108-113dBx2
-SHD2
DC-4.23kg
AC-4.95kg

SHD2P
DC-4.48kg
AC-5.20kg
R-Red
A-Amber
  G-Green
B-Blue
DC24V2.7A
24V15WG23 15S18
AC110V600mA
12V15WG23 15S17
AC220V300mA
12V15WG23 15S17

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Customizable voices

Ch1
Ch2
Ch3
Ch4
Ch5
