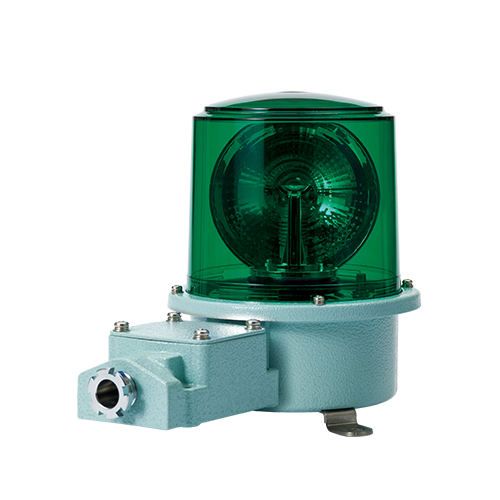

SH2TLR
Weatherproof Revolving Beacons / Visual Signal Alarms
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø138 │Height : 198 │Length : 250
- Materials
العدسات-PC │المبيت-Al
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Features high visibility in all directions with special concentrated LED light structure and multi side reflector
- Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the terminal box
- Revolving speed : 120-140RPM

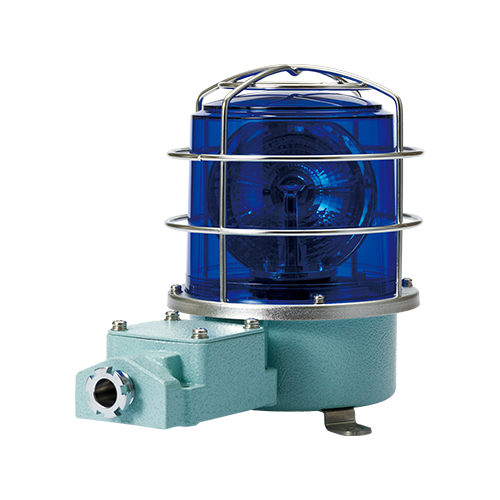

- Materials : Lens-PC, Housing-Al, Protection cage-STS316L, Reflector-PC, Bracket-STS316L
- Ambient operation temperature : -20°C to +50°C
- Cable entry : 1/2′′PF
- Housing standard color : MUNSELL No.7.5BG 7/2
- Protection rating : IP66
Product Specifications
| Model number | Voltage | Current | Certificates | Color |
|---|---|---|---|---|
| SH2TLR SH2TLRP | DC12V | 420mA | - |  R-Red A-Amber G-Green B-Blue |
| DC24V | 260mA | |||
| AC110V | 80mA | |||
| AC220V | 50mA |
