SH Series
Copied to clipboard

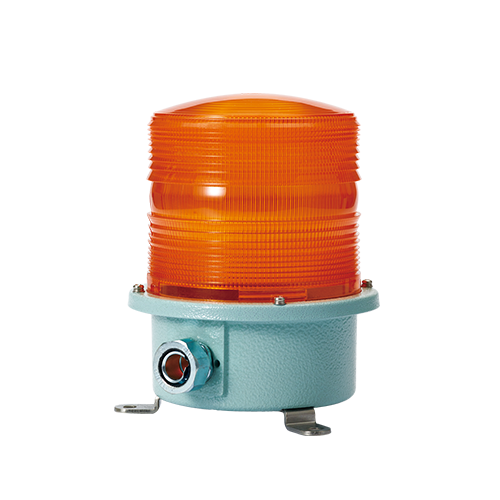

SH2L
Weatherproof Blinking Beacons / Visual Signal Alarms
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø138 │Height : 198
- Materials

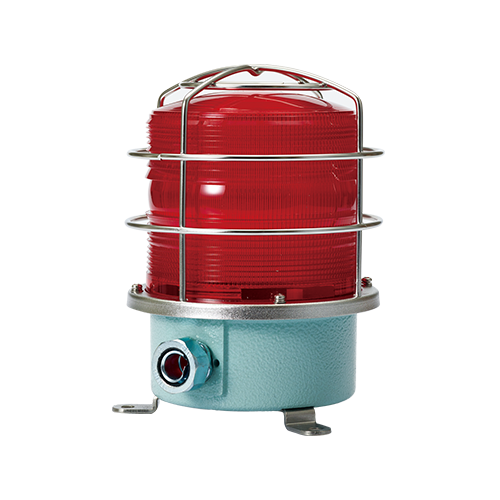

Lens-PC │Housing-Al, STS316L │Protection cage-STS316L │Reflector-Heat resistant ABS │Bracket-STS316L
- Protection rating
IP66
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the product
- Uniform and clear light diffusion with multi layered LED light distribution reflector
- Built-in switch for selection between steady and flashing mode
- Flashing rate : 60-80 flashes/min
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Ambient operation temperature : -30°C to +50°C
- Cable entry :1/2″PF
Product Specifications
| Model number | Voltage | Current | Certificates | Color |
|---|---|---|---|---|
SH2L SH2LP SH2TL SH2TLP | DC12V-24V | Max.300mA | - |  R-Red A-Amber G-Green B-Blue |
| AC110V | 70mA | |||
| AC220V | 35mA |
