SEWN/SHDN Series
Copied to clipboard

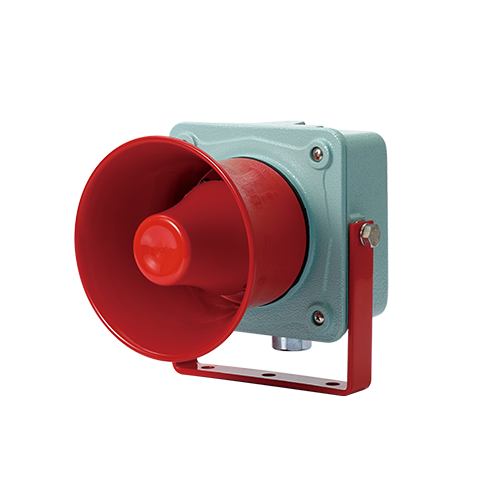

SEWN50L
- Product Feature
20 صوتًا مُدمجًا (Max.120dB at 1m), 5 أصوات محددة بواسطة المُستخدمs (109-117dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Horn Diameter : Ø172
Depth : 203 - Materials
المبيت-Al │مبيت البوق-STS316L
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Electric horn with tightly sealed structure has excellent durability. Suitable for vessels, steel industry, and outdoor plant applications
- Aluminum housing provides excellent durability
- A variety of sound selection between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
- Can adjust sound volume with the dial built inside the unit
- Terminals located inside the terminal box or product
- Cable entry : 1/2″PF
- Standard Housing color : MUNSELL No. 7.5BG 7/2
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP66, Suitable for outdoor installation
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Sound pattern and volume | Certificates | Weight |
|---|---|---|---|---|---|
SEWN50L | DC12V | 2.5A | ·WS-5 Warning sounds: Max.120dB ·WP-5 Special warning sounds: Max.120dB ·WM-5 Melodies: Max.115dB ·WA-5 Alarms: Max.118dB ·WV-5 Customizable voices: 109-117dB | | DC-4.65kg AC-4.95kg |
| DC24V | 1.18A | ||||
| AC110V | 300mA | ||||
| AC220V | 160mA |
※ CE compliant : DC24V
※ Max.built-in volume feature is based on WS, WP-Ch1 / WM-Ch5 / WA-Ch5.
※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
