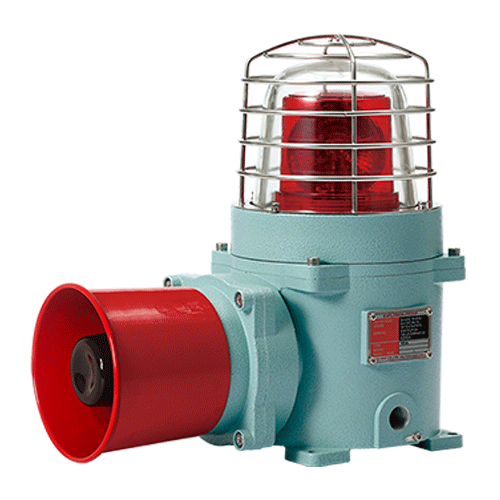

SESA Series
Copied to clipboard
SESALR
- Product Feature
20 صوتًا مُدمجًا (Max.118dB at 1m), 5 أصوات محددة بواسطة المُستخدم (110-115dB at 1m)
- Voltage
DC:24V│AC:120V,230V
- Dimension
Cage Diameter : Ø167 │Height : 333 │Length : 327
- Materials
العدسات-الزجاج المُعالج │المبيت-Al
- Protection rating
Ex db IIC T6 Gb│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

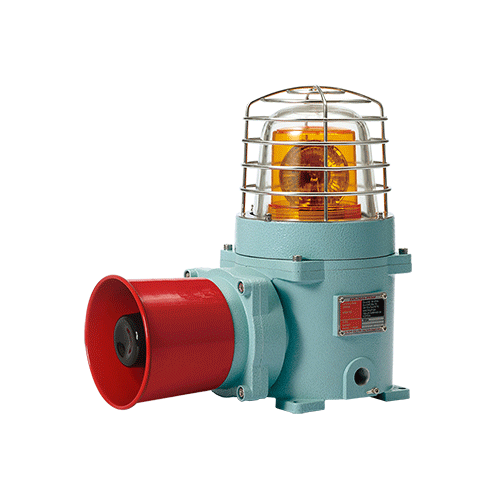

Product Feature- Large explosion proof signal beacon / light & electronic sounder combinations
- A variety of light sources and sound selections to fit your sophisticated application needs
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector
- Sound volume : Max. 118dB at 1m(Volume adjustable)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector-PC
- Certificates : IECEx, ATEX, NEPSI, KCs, CCS, CCC
- Protection rating :
IECEx - Ex db IIC T6 Gb
ATEX -
II2G Ex db IIC T6 Gb
KCs - Ex d IIB+H2 IP66 T6
NEPSI, CCC: Ex db IIC T6 Gb, Ex tb ⅢC T80℃ Db - Ambient operating temperature :
-40°C ≤ Tamb ≤ +55°C(KCs)
-40°C ≤ Tamb ≤ +60°C - Voltage AC120V: AC110V-120V, AC230V: AC220V-230V
II2G Ex db IIC T6 GbProduct Specifications
| Model number | Voltage | Current | Sound pattern and volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| SESALR | DC24V | 1.16A | • WS-5 Warning sounds : Max.118dB • WP-5 Special warning sounds : Max.118dB • WM-5 Melodies : Max.118dB • WA-5 Alarms : Max.116dB • WV-5 Customizable voices : 110-115dB | | 8.31kg |  R-Red A-Amber G-Green B-Blue |
| AC120V | 280mA | 7.92kg | ||||
| AC230V | 160mA | 7.92kg |
ᆞExcellent omni-directional visibilitywithLEDlight collecting system and special multifaceted reflector
ᆞRevolving speed: 120-140RPM
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
