SEBA Series
Copied to clipboard
SEBAS
- Product Feature
جرس الإنذار (Max.95dB at 1m)
- Voltage
DC:24V│AC:110V,220V
- Dimension
Cage Diameter : Ø167 │Height : 333 │Depth : 240
- Materials
Lens-Tempered glass │Filter-PC │Housing-Al │Protection cage-STS316L
- Protection rating
IP55
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

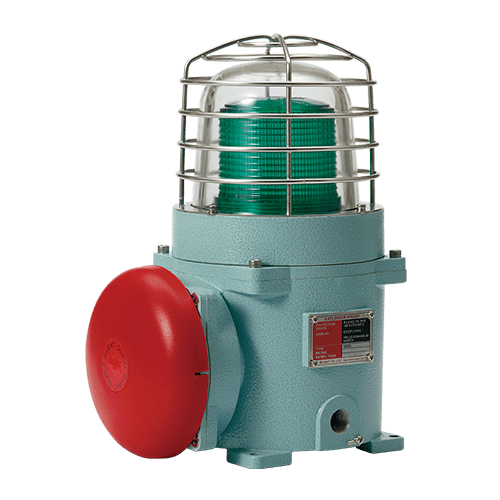

Product Feature- Large explosion proof signal beacon / light & alarm bell combinations
- Lamp connector fastening structure allows for convenient lamp replacement
- Flashing rate : 60-80 flashes/min
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Protection rating : Ex d ⅡC T6, IP55
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SEBAS | DC24V | 660mA | 200V-550V | EUB0641-1A(G) U type | 48 | Max.95dB | - | 7.37kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 220mA | 8.06kg | |||||||
| AC220V | 160mA | 8.06kg | |||||||
