SEBA Series
Copied to clipboard
SEBA
- Product Feature
جرس الإنذار (Max.95dB at 1m)
- Voltage
DC:24V│AC:110V,220V
- Dimension
Cage Diameter : Ø167 │Height : 333 │Depth : 240
- Materials
العدسات-الزجاج المُعالج │المبيت-Al
- Protection rating
Ex d ⅡC T6│IP55
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

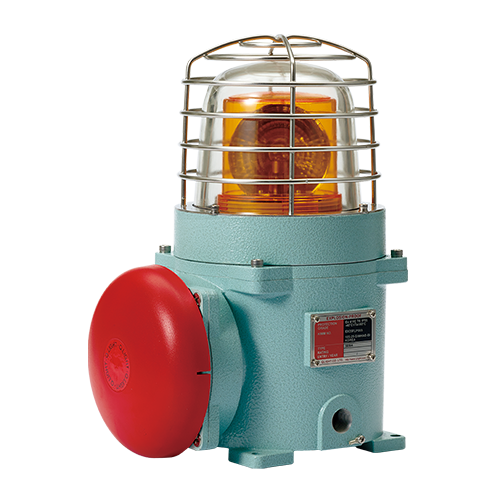

Product Feature- Large explosion proof signal beacon / light & alarm bell combinations
- Excellent diffusion effect with special multifaceted reflector
- Revolving speed : 120-140RPM
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials: Lens-Tempered glass, Filter-PC, housing-Al, Protection cage-STS316L, Reflector-PC
- Certificates : KIMM
- Protection rating : Ex d ⅡC T6, IP55
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Product Specifications
| Model number | Voltage | Current | Bulb | Volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SEBA | DC24V | 870mA | 24V15W | G23 15S | 18 | Max.95dB | | 7.37kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 290mA | 12V15W | G23 15S | 17 | 8.06kg | ||||
| AC220V | 140mA | 12V15W | G23 15S | 17 | 8.06kg | ||||
