SEA Series
Copied to clipboard

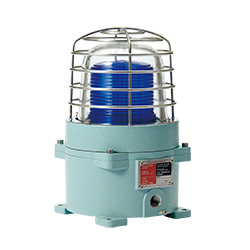

SEALR
- Voltage
DC:24V│AC:120V,230V
- Dimension
Cage Diameter : Ø167 │Height : 287 │Length : 172
- Materials
Lens-Tempered glass │Filter-PC │Housing-Al │Protection cage-STS316L │Reflector-PC │Reflector-Heat resistant ABS
- Protection rating
Ex db IIC T6 Gb│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Large explosion proof warning/ signal lights with excellent visibility for long distance
- A variety of light source selections from bulb, LED, and xenon lamp
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Usable voltage AC120V: AC110V-120V, AC230V: AC220V-230V
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Explosive protection rating :
IECEx - Ex db IIC T6 Gb, IP66
ATEX -
II2G Ex db IIC T6 Gb, IP66
KCs- Ex d IIC T6 IP66
Ex tD A21 IP66 T85℃
NEPSI, CCC - Ex db IIC T6 Gb - Ambient operating temperature :
-40°C ≤ Tamb ≤ +60°C
II2G Ex db IIC T6 Gb, IP66Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SEALR | DC24V | 75mA | | 5.33kg |  R-Red A-Amber G-Green B-Blue |
| AC120V | 75mA | 5.74kg | |||
| AC230V | 30mA | 5.74kg |
