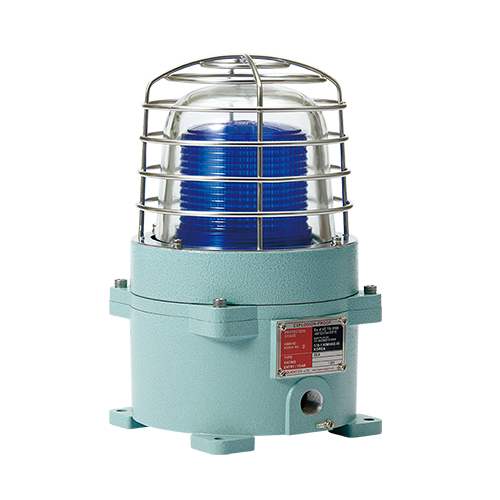

SEAL-TI
- Voltage
DC:24V│AC:120V,230V
- Dimension
Cage Diameter : Ø167 │Height : 287 │Length : 172
- Materials
Lens-Tempered glass │Housing-Al
- Protection rating
Ex db IIC T6 Gb│IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Large explosion proof Signal Beacons with excellent visibility for long distance
Telephone Initiated Signal beacon triggers bright lighting that is activated by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- A variety of light source selections from bulb, LED, and xenon lamp
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : 95VDC to 130VDC
- Suitable for applications where bulb replacement is difficult
- Built in switch for steady/flashing selection
- Flashing rate : 60-80 flashes/min
- Housing standard color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Inner lens-PC, Housing-Al, Protection cage-STS 316L, Reflector for LED type-PC/ Reflector for bulb type-Heat resistant ABS
- Certificates : IECEx, ATEX
- Explosive protection rating : IECEx - Ex db IIC T6 Gb, IP66
ATEX -
II2G Ex db IIC T6 Gb, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
II2G Ex db IIC T6 Gb, IP66Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SEAL-TI | DC24V | 110mA | | 4.87kg |  R-Red A-Amber G-Green B-Blue |
| AC120V | 125mA | 5.25kg | |||
| AC230V | 50mA |
