SDLR

SED/SD/SMD Series Copied to clipboard

SDLR

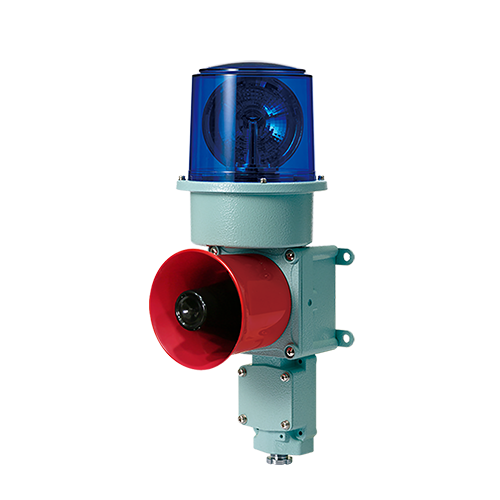

Signal Beacon and Electronic Sounder Combinations for Vessels and Heavy Industry Applications
LED Revolving Signal Beacon and Electronic Sounder Combination Max.114dB
LED Revolving TypeIP66-20℃ ~ +50℃Horn114dBNPN-Transistor Type
  • Product Feature

    20 صوتًا مُدمجًا (Max.114dB at 1m), 5 أصوات محددة بواسطة المُستخدم (108-113dB at 1m)

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø138 Height : 410 Depth : 175

  • Materials

    العدسات-PC المبيت-Al

  • Protection rating

    IP66

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Wall mount signal beacon & electronic sounder combinations for marine and heavy industries applications
  • Aluminum housing and polycarbonate lens material provides excellent impact and shock resistance
  • Excellent hermetic structure that block water and dust
  • Attached terminal box enables easy wiring
  • Can adjust sound volume and select sound pattern with the switches built inside the products
  • Cable entry : 1/2″ PF

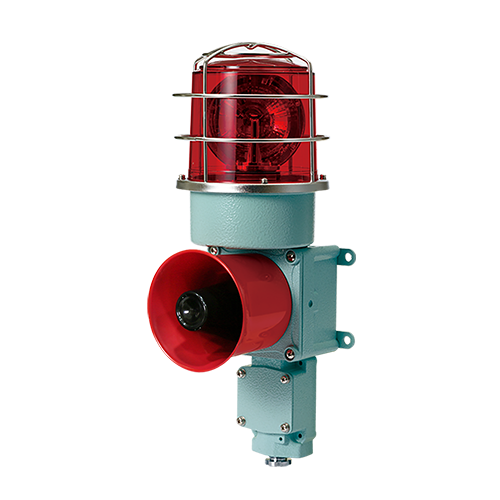

  • Materials : Lens-PC, Housing-Al, Protection cage-STS316L, reflector-PC
  • Standard housing color : MUNSELL No. 7.5GBG 7/2
  • Revolving speed : 120-140RPM
  • Ambient operating temperature : -20°C to + 50°C
  • Protection rating : IP66

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model
number
VoltageCurrentSound pattern and volumeCertificatesWeightColor
SDLR
SDLRP
DC12V1.7A

·WS-5 Warning sounds: Max.114dB

·WP-5 Special warning sounds: Max.114dB

·WM-5 Melodies: Max.110dB

·WA-5 Alarms: Max.114dB

·WV-5 Customizable voices: 108-113dB

-
· SDLR
DC-3.36kg
AC-4.13kg

· SDLRP
DC-3.65kg
AC-4.42kg
 R-Red
A-Amber
G-Green
 B-Blue
DC24V1.3A
AC110V330mA
AC220V180mA

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Customizable voices

Ch1
Ch2
Ch3
Ch4
Ch5
