SCD Series
Copied to clipboard

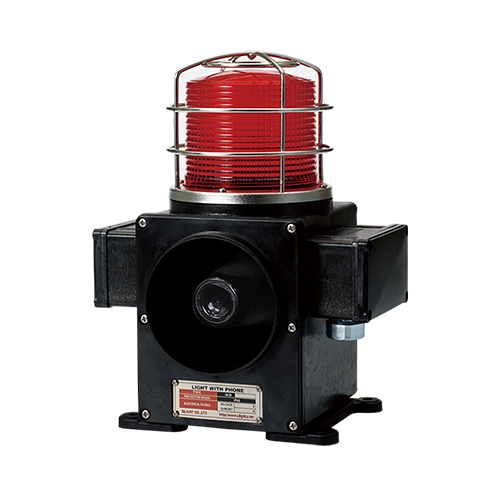

SCDFS
Xenon Strobe Signal Beacon and Electronic Sounder Combination Max.113dB
- Product Feature
20 صوتًا مُدمجًا (Max.113dB at 1m), 5 أصوات محددة بواسطة المُستخدم (108-113dB at 1m)
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Cage Diameter : Ø140 │Height : 322 │Length : 167
- Materials
العدسات-PC │المبيت-PC+GF
- Protection rating
IP66
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Signal beacon & electronic sounder combinations for marine and heavy industries applications
- Light weight model with special polycarbonate (PC+GF) housing
- Excellent hermetic structure that blocks water and dust
- Superior impact and shock resistance
- Prevents damage from external contact with recessed horn structure, high volume output possible with the extended length of the horn housing
- Easy wiring and sound control with the terminal box attached on the side of housing
- Standard model comes with a protection cage equipped
- Can select a variety of light sources and sound pattern combinationsCan adjust sound volume and select sound pattern with the switches built inside the units
- Convenient lamp exchange by adopting connector type lamp installation
- Materials : Lens-PC, Housing-PC+GF, Protection cage-STS316L
- Cable entry : 1/2″PF
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP66
- Mountings : Available in self stand type
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Sound pattern and volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SCDFS | DC12V | 2.5A | 200V-550V | EUB0641-1A(G) U Type | 48 | • WS-5 Warning sounds: Max.113dB • WP-5 Special warning sounds: Max.113dB • WM-5 Melodies: Max.113dB • WA-5 Alarms: Max.113dB • WV-5 Customizable voices: 108-113dB | | 2.46kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 1.4A | ||||||||
| AC110V | 360mA | 3.85kg | |||||||
| AC220V | 220mA | ||||||||
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
