SAB Series
Copied to clipboard

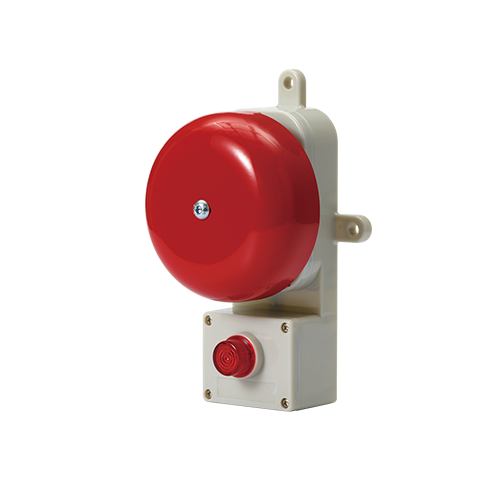

SAB130
- Product Feature
صوت الجرس (Max.95dB at 1m)
- Voltage
DC:24V│AC:110V,220V
- Dimension
Bell Diameter : Ø130 │Height : 238 │Depth : 107
- Materials
الجرس-Steel │المبيت-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Electric solenoid bell system provides excellent durability to vibration and shock for vessels and large facilities
- Special material for bell housing provides clear and crisp alarm sound
- Excellent vibration and shock resistant structure for superior durability
- Easy wiring and maintenance with terminal box attached
- Lamp attached provides visual signals
- Bell and lamp operation is synchronized. Each function can also operate separately
- Standard color : Housing-beige, Bell/ Lamp-Red
- Materials : Bell-Steel, Housing-ABS
- Ambient operating temperature : -25°C to +50°C
- Cable entry : Ø20
Product Specifications
| Model number | Frequency | Volume | Bell diameter | Voltage | Current | Certificates | Weight | Bell/Lamp Color |
|---|---|---|---|---|---|---|---|---|
| SAB130 | 400-600Hz | Max.95dB | 130mm | DC24V | 1.3A | | 1.88kg |  R-Red |
| AC110V | 380mA | |||||||
| AC220V | 300mA |
