S Series for vehicle
Copied to clipboard
S80SM

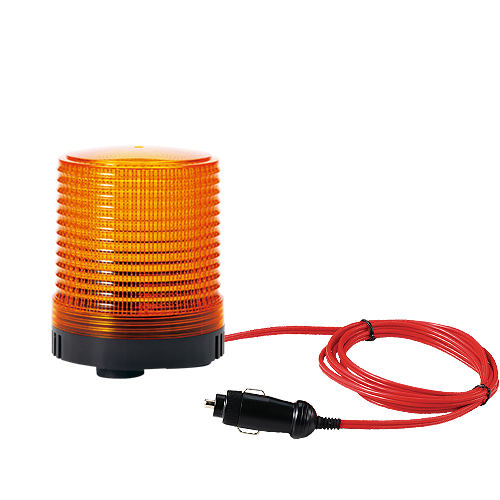

Xenon Lamp Strobe Light Equipped with Magnet
- Voltage
DC:12V,24V
- Dimension
Lens Diameter : Ø80(Approx.) │Height : 106
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø80mm xenon lamp strobe signal light
- It has high instantaneous luminous efficiency and emits signal light close to natural light, providing excellent long-distance visibility
- Lamp connector fastening structure allows for convenient lamp replacement
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S80SM | DC12V~24V | Max.490mA | 220V-350V | BGA2120-BBC I type | 47 | | 0.24kg |  R-Red A-Amber G-Green B-Blue |
| 0.24kg | ||||||||
※ DC type model has a free-voltage range of 10V-30V
※ CE compliant: DC12V-24V
