S Series (Ø50-80)
Copied to clipboard
S80DRK
- Voltage
DC:12V,24V│AC:110V,220V
- Dimension
Lens Diameter : Ø84(Approx.) │Height : 153
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature

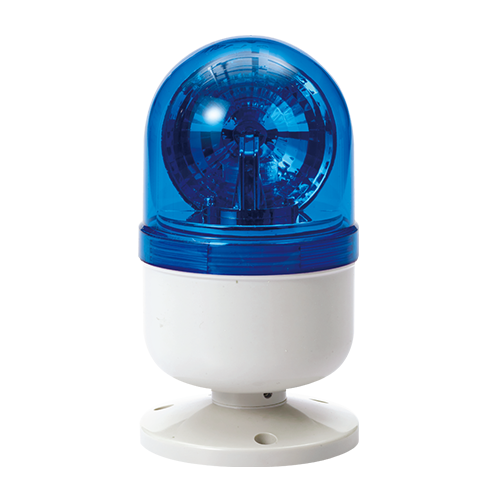

Product Feature- Ø80mm LED revolving warning light
- Adopts a special power transmission system that reduces noise and wear
- Circular mount bracket allows convenient installation
- No buzzer allowed
- Revolving speed : 120-140RPM
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP44
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S80DRK S80LRK | DC12V | 180mA | - | 0.24kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 125mA | 0.24kg | |||
| AC110V | 35mA | 0.43kg | |||
| AC220V | 25mA | 0.43kg |
