S Series (Ø50-80)
Copied to clipboard

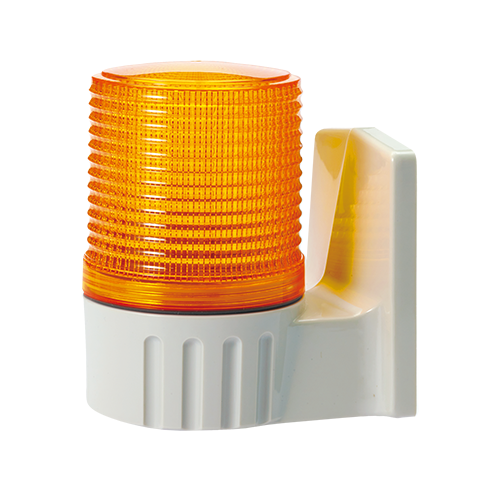

S80AL
LED Steady/Flashing Signal Light
Max.90dB
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø80(Approx.) │Height : 127 │Depth : 113
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP44
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Equipped wall mount allows for easy assembly. Additional mounting brackets not required
- Maintenance reduced with longlasting LED light source
- Built-in buzzer available(Volume : Max. 90dB at 1m)
- Built-in switch for selection between steady and flashing mode
- Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| S80AL | DC12V-24V | Max.145mA | | 0.26kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 35mA | 0.35kg | |||
| AC220V | 20mA | 0.35kg |
※ DC type model has a free-voltage range of 10V-30V
※ CE compliant: DC12V-24V
