S180UHS

S Series (Ø150-180) Copied to clipboard

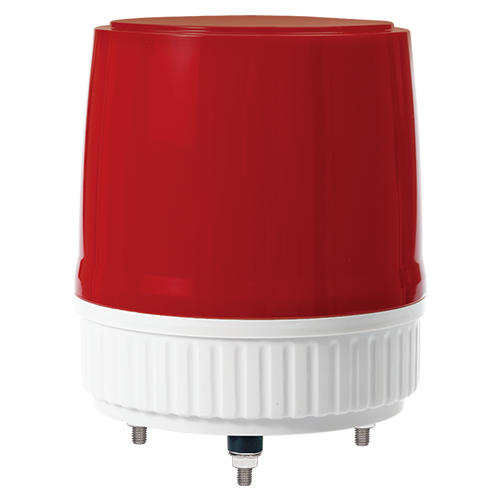

S180UHS

Ø180mm Hyper Brightness
Xenon Lamp Strobe Signal Light
Max.90dB
Xenon Lamp Strobe TypeIP44-30℃ ~ +50℃Buzzer90dB
  • Product Feature

    نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري

  • Voltage

    DC:12V-24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø180(Approx.) Height : 216

  • Materials

    العدسات-ABS المبيت-ABS

  • Protection rating

    IP44

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Excellent long distance visibility from flashing light of the high capacity xenon lamp
  • Adopts a translucent lens which provides a luminous light and subdued signal
  • Convenient lamp change adopts lamp connector type structure
  • Built-in buzzer available(Volume : Max. 90dB at 1m)
  • Materials: Lens-ABS, Housing-ABS
  • Flashing rate : 60-80 flashes/min(2 time consecutively flashing off or two in a row)
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP44

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentXenon lamp
CertificatesWeightColor
SpecStandardParts no
S180UHSDC12V-24VMax.2.28A280V-400VBH0647(G)

W type
49-1.18kg R-Red
A-Amber
 G-Green
 B-Blue
AC110V890mA1.02kg
AC220V500mA1.02kg

  • Product Feature
  • Product Specifications
  • Download

Download

※ If the PDF file does not display properly, please use [Adobe Reader], the official PDF viewer.
