S Series (Ø150-180)
Copied to clipboard

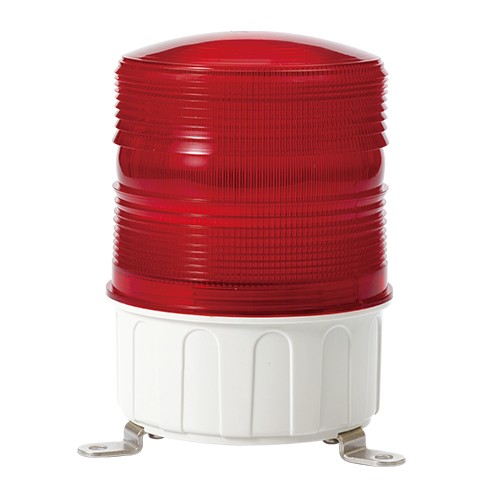

S150US-FT
- Product Feature
نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري
- Voltage
DC:12V-24V│AC:110V,220V
- Dimension
Lens Diameter : │Ø150(Approx.) │Height : 196
- Materials
العدسات-PC │المبيت-ABS
- Protection rating
IP44
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Mounting bracket allows convenient installation in case of XXX-FT type
- Connector type lamp socket allows convenient lamp replacement
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Flashing rate : 60-80 flashes/min
- Materials : Lens - PC, Housing - ABS, Mounting bracket - SUS316L
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP44
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S150US-FT | DC12V-24V | Max.1.3A | 200V-550V | EUB0641-1A(G) U type | 48 | - | 0.56kg |  R-Red A-Amber G-Green B-Blue |
| AC110V | 160mA | 0.54kg | ||||||
| AC220V | 140mA | 0.54kg | ||||||
ㆍConnector type lamp socket allows convenient lamp replacement
