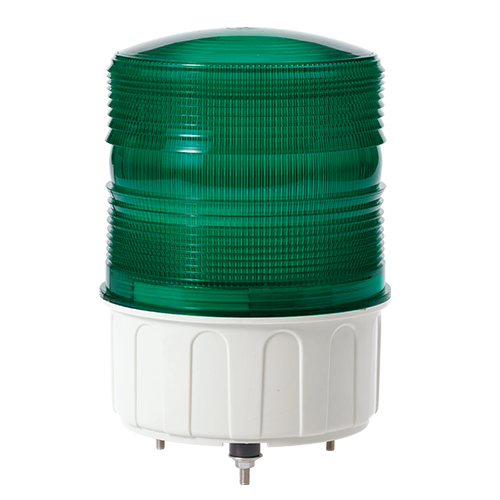

S150UL

S Series (Ø150-180) Copied to clipboard

S150UL

Ø150mm
LED Steady/Flashing Signal Light
Max.90dB
LED Steady/Flashing TypeIP44-30℃ ~ +50℃Buzzer90dB
  • Product Feature

    نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري

  • Voltage

    DC:12V-24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø150(Approx.) Height : 193

  • Materials

    العدسات-PC المبيت-ABS

  • Protection rating

    IP44

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Built-in switch for selection between steady and flashing mode
  • Built-in buzzer available (Volume : Max. 90dB at 1m)
  • Flashing rate : 60-80 flashes/min
  • Materials : Lens - PC, Housing - ABS, Reflector - Heat resistant ABS
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP44

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentCertificatesWeightColor
S150ULDC12V-24VMax.300mA-0.52kg R-Red
A-Amber
 G-Green
 B-Blue
AC110V70mA0.92kg
AC220V35mA0.92kg

ㆍBuilt-in switch for selection between steady and flashing mode
