S150U

S Series (Ø150-180) Copied to clipboard

S150U

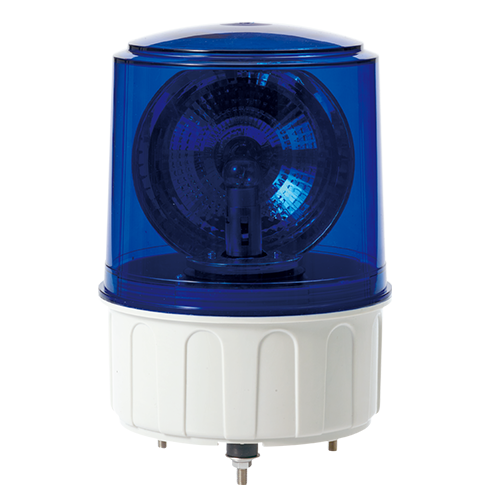

Ø150mm Bulb Revolving Warning Light
Max.90dB
Bulb Revolving TypeIP44-20℃ ~ +50℃Buzzer90dB
  • Product Feature

    نوع جهاز الإنذار ذي مستوى الصوت الثابت (Max. 90dB at 1m) : متوافر بشكلٍ اختياري

  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø150(Approx.) Height : 193

  • Materials

    العدسات-PC المبيت-ABS

  • Protection rating

    IP44

  • Certificate

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • Special power transmission system which allows low noise and less wear
  • Suitable for Long distance signal transmission by adopting high capacity bulb and large sized reflector
  • Built-in buzzer available (Volume : Max. 90dB at 1m)
  • Revolving speed : 120-140RPM
  • Materials : Lens - PC, Housing - ABS, Reflector - PC
  • Ambient operating temperature : -20°C to +50°C
  • Protection rating : IP44


  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model numberVoltageCurrentBulbCertificatesWeightColor
SpecStandardParts no
S150UDC12V1.5A
12V15WG23 15S17

0.65kg R-Red
A-Amber
 G-Green
 B-Blue
DC24V850mA
24V15WG23 15S180.65kg
AC110V200mA
12V15WG23 15S171.04kg
AC220V100mA12V15WG23 15S171.04kg

ㆍSuitable for Long distance signal transmission by adopting high capacity bulb and large sized reflector

※ CE compliant: DC12V, DC24V

  • Product Feature
  • Product Specifications
  • Download

Download

※ If the PDF file does not display properly, please use [Adobe Reader], the official PDF viewer.
