S Series for vehicle
Copied to clipboard
S125SM

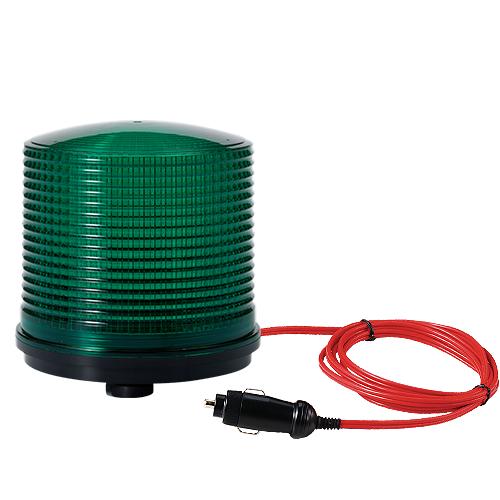

Magnet Mount Xenon Strobe Signal Light
- Voltage
DC:12V-24V
- Dimension
Lens Diameter : │Ø125(Approx.) │Height : 123
- Materials
العدسات-AS │المبيت-ABS
- Protection rating
IP54
- Certificate
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
Product Feature
Product Feature- Ø125mm xenon strobe signal light
- Power supply through cigarette lighter plug
- It has high instantaneous luminous efficiency and emits signal light close to natural light, providing excellent long-distance visibility
- Lamp connector for convenient lamp replacement
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
Product Specifications
| Model number | Voltage | Current | Xenon Lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S125SM | DC12V-24V | Max.1.3A | 200V-550V | EUB0641-1A(G) U type | 48 | | 0.40kg |  R-Red A-Amber G-Green B-Blue |
※ CE Compliant: DC12V-DC24V
