S125DML

S100D/S125D/STD Series Copied to clipboard

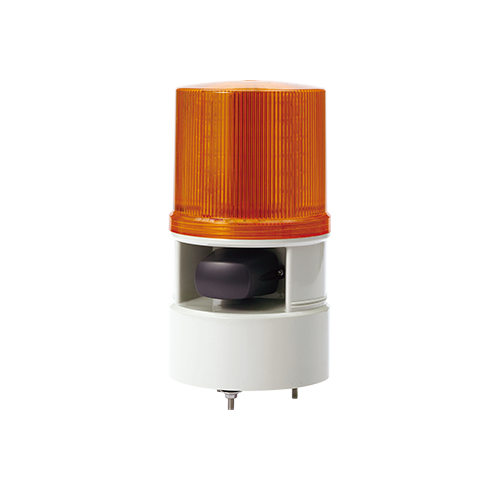

S125DML

Multifunctional LED beacon with built-in signal sound Max.105dB
-30℃ ~ +50℃IP54Horn105dBNPN-Transistor TypeRoHS
  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø110 Body Diameter : Ø119 Height : 222

  • Materials

    Lens-AS Housing-ABS

  • Protection rating

    IP54

※ Please refer to technical information page for detailed specification including measurement.

(PDF Viewer, PDF Download, Auto-CAD)

  • Product Feature
  • Product Specifications
  • Download

Product Feature

Product Feature
  • 125mm outer diameter signal beacon/indicator and electronic horn combined structure to transmit visual and audio signals simultaneously
  • Various light sources and tones allow you to select the signal that best suits your working environment
  • Models with complex functions of LED steady/flash, strobe and rotation flashing
  • Select the desired operation through the switch inside the device
  • Easy to maintain and manage by adopting an LED light source that is resistant to shock and vibration and has a long life LED
  • Flashing rate: 60-80/min
  • Strobe rate: 70-80/min
  • Rotation flashing type Rotation speed: 120-140RPM
  • Material: Lens-AS, Body-ABS
  • Ambient temperature: -30℃ - +50℃
  • Protection class: IP54

  • Product Feature
  • Product Specifications
  • Download

Product Specifications

Model number
Voltage
Current
Sound Pattern and Volume
Weight
Color
S125DMLDC12V-24VMax.450mA
WS-5 Warning sounds : Max.105dB
WM-5 Melodies : Max.105dB
WA-5 Alarms : Max.103dB
WV-5 Customizable sounds : 91-100dB
0.88kg
 R-Red
A-Amber
G-Green
 B-Blue
AC110V-220VMax.150mA
0.93kg

※ Max.built-in volume feature is based on WS-Ch3 / WM-Ch4 / WA-Ch1.

※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.

Sound Tone Combination of Standard Product

Sound Category Sound Tone Channel Sound
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5
5 Customizable voices

Ch1
Ch2
Ch3
Ch4
Ch5
